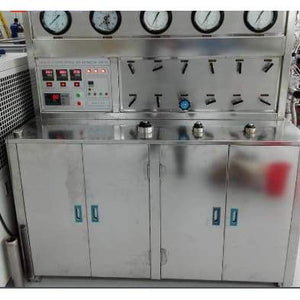

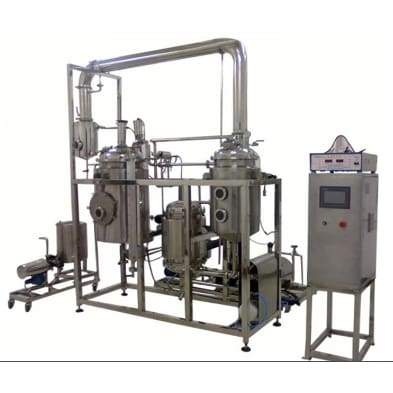

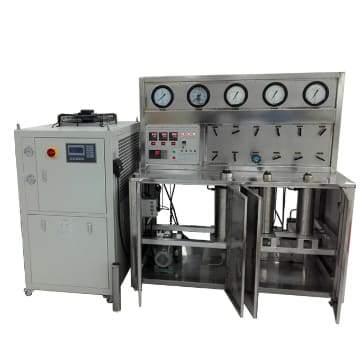

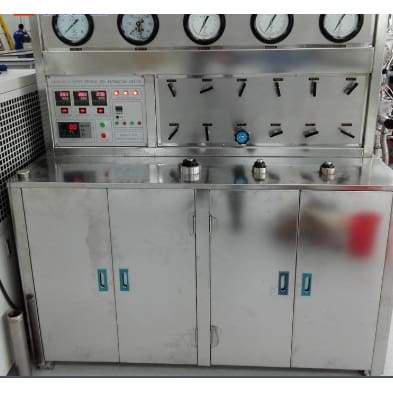

Solvent Supercritical Co2 Extraction Equipment for Cbd Oil

APM-USA

$50,000.00
SKU: P2857S

Product Description

The technology of SFE(Super-critical Fluid Extraction) is a new subject from Modern Chemicals Industries, which is one of the advanced Separation Technology. As for SCF (Super-critical Fluid), it is was that fluid on Critical Point(PC, Tc) under Thermodynamic State, the Critical Point is the state point when interface of Gas and Liquid disappear, which process very novel physical& chemical characters. It density degree close to liquid, viscosity degree close to gas, but bigger diffusion coefficient &dielectric constant, smaller viscosity etc. these characters have contributed to good separation effects. So the SFE is mainly about Separation, the solution will touch with extracted materials under High Pressure& Suitable Temperature, the Solutes would be diffused into the solution, then change the operation Conditions, to make the Solutes.

Main Technical Index

1. Extraction kettledrum, 1L, 2L, 5L/50Mpa,10L, 24L/40Mpa, 50-200L/32Mpa, dual purpose for solid and liquid, equipped with water jacket for circulated heating with adjustable temperature.

2. Separation Kettle: 0.3-10L/30 mpa, 50-100L/16-22 map, equipped with water jacket for circulated heating with adjustable temperature.

3.Fine Distillation Column: inner diameter? 25x2-3m/30mpa, ?35x2-3m/30mpa, ?48x4-6m/30mpa,?78 4-6m/30mpa, according to technological requirement, 4-section, 6-section or 8-section temperature control are available and relative stuffing can be selected and loaded by customer according to technological requirement

4. High Pressure Pump: 20L/40mpa•h double-plunger, 50L/50mpa•h double-plunger frequency-modulating,400L/40mpa•h three-plunger frequency-modulating, 800L/40mpa•h three-plunger frequency-modulating, the pump head with cooling system.

5. Take Pump: in the course of extraction, the entrant is used to change polarities of CO2 so as to extend range of application.

6. Cooling System: equipped with semi-sealed or full-sealed compressor to meet technological requirement.

7. Heat Exchange and Temperature Control System: according to technological requirement, the heat exchange and temperature control system are equipped for extraction kettle, separation kettle and fine distillation column respectively to control the temperature of water circulation at -85?and the temperature of oil circulation at-150?; the digital display double-screen is used to control the temperature of water bath and to measure the temperature of CO2 fluid with the accuracy of temperature control at ±1?.

8. Pressure Control (Protection): equipped with the elector connecting pressure gauge at the outlet of the high pressure pump and set the working pressure to release pressure and make automatic protection in case over pressure occurs; equipped with safety valves for high pressure pump, extraction kettle, separation kettle, fine distillation column according to their maximum working pressures to release pressure and make automatic protection in case over pressure occurs: equipped with back-pressure valve system at the outlet of the extraction kettle which has stable pressure and is easy to make adjustment. The control accuracy of pressure(dynamic)is +0.1mpa

9. Display of Flow: the metal rotor flow meter with remote transferable digital display for instant flow and accumulated flow respectively

10. Pipelines: all containers, valves, pipe fittings and pipelines contacting with fluid are all made of stainless steel.

11. Others: three-phase-four-wire power supply with 380V/50HZ andCO2 with foodstuff grade?99.5% are prepared by customer itself.

Application of the Super Critical CO2 Fluid
Range of Application
Type of Application

Pharmaceutical Industry
Extraction of effective contents of Chinese herbs, concentration, refinement and precipitation of raw material drug, separation and refinement of fatty mixtures
Foodstuff Industry
Extraction of hops, caffeine removal from coffee berry, extraction of plant pigment
Cosmetics and Perfumery Industries
Separation and refinement of natural and synthetic perfumeries, extraction of raw material cosmetics

Chemical Industry
Separation of hydrocarbon, refinement of organic synthetic raw material, separation of azeotrope, retrieval of raw materials of reaction, dehydration of water soluble powder of organic solution, water oxidation


Others
Superconducting, semiconductor, ceramics, oil washing of petroleum core, enzyme catalytic reaction, preparation of materials, superfine granules, extraction of complex compound, super critical dyeing technique, super critical reaction,super critical coating technique (pharmacy-making)
