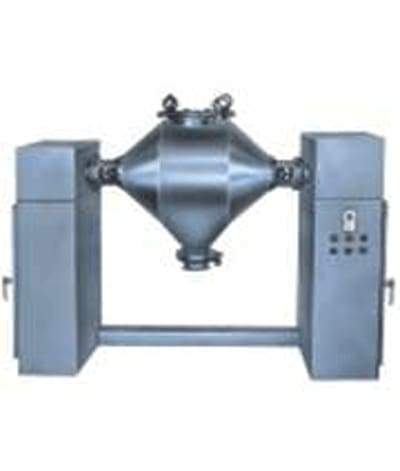

Cw Series Stirring Type Mixer

APM-USA

$4,000.00
SKU: P4843S

Application:

Our company develops CW series stirring mixer under absorption of foreign new technology, based on W series double cone mixer, this machine adds stirring unit, which can be used for material mixing in such industries as pharmacy, foodstuff, chemical industry and feedstuff etc.

Main properties:

This machine can rapidly mix such materials as easy clot and with certain water content, having fast mixing speed and good mixing effect.

The mixing uniformity rate can reach over 95%, Inner of this machine is of new type sealing structure, during mixing, it is free of pollution, with simple structure and convenient operation

Technical Parameters



Model

Barrel

volume(L)

Loading

capacity(L)

Mixing time

(min)

Mixing motor

(KW)

Stirring

motor(KW)

Mixing rotary

speed

(rpm/min)

Stirring rotary

speed

(rpm/min)

Overall dimension

CW-50

50

25

5-10

1.1

0.75

20

60

1500×450×1200

CW-100

100

50

5-10

1.5

1.1

20

60

1550×550×1350

CW-200

200

100

5-10

2.2

1.1

20

60

1800×700×1500

CW-300

300

150

5-10

2.2

1.1

20

60

2100×760×1760

CW-500

500

250

5-10

3

2.2

20

60

2320×950×1920

CW-1000

1000

500

5-10

5.5

2.2

10

40

2450×1050×2500

CW-1500

1500

750

5-10

7.5

4

10

40

2900×1300×2700

CW-2000

2000

1000

5-10

7.5

4

8

30

3000×1400×3100

CW-2500

2500

1250

5-12

11

5.5

6

20

3600×1400×3200

CW-3000

3000

1500

5-12

11

5.5

6

20

4000×1500×3500

CW-4000

4000

2000

5-15

15

5.5

6

20

4800×1300×3800

CW-5000

5000

2500

5-15

15

7.5

5

20

5400×1300×4000

CW-6000

6000

3000

5-15

17.5

7.5

5

20

5650×1300×4380
