Cleanroom Polyurethane Aluminum Sandwich Panels

APM-USA

$70.00
SKU: P4339S

Product Description

It is widely used in the hospital operating room, industries of electronic, pharmaceutical, food, biotechnology, aerospace, precision instrument, and other indoor engineering sites with strict environmental requirements.
Features:
1. Lightweight
2. Heat insulating
3. High strength
4. Elegant finish

Technical parameters
Models

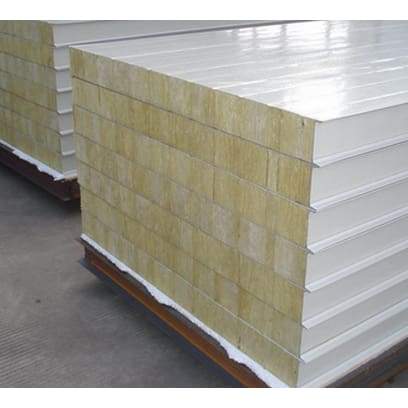

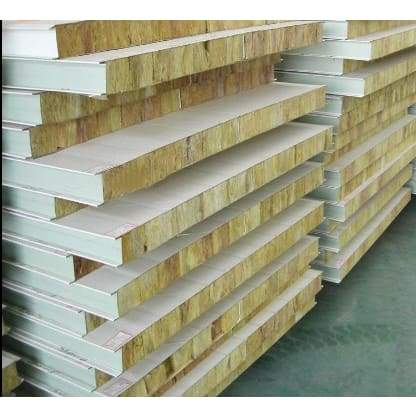

Rock wool

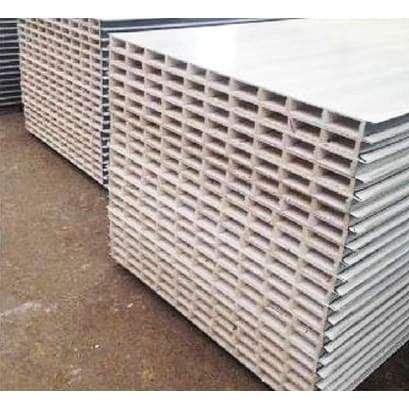

Honeycomb
Plastered
Glass-magnesium
Thickness:
50mm, 75mm, 100mm
Material
composed of colorful steel sheets and Polyurethane (pu)/Rock wool/ Honeycomb/Plastered/Glass-magnesium
Unit weight of core material
8-20 kg/cbm
Width of the panels
950mm for wall and 960mm for roof
Panels type
Wall panel and roof panel
Surface texture and appearance
Small wave, flat, embossment, big rib
Heat insulating material
Polyurethane (pu)/Rock wool/ Honeycomb/Plastered/Glass-magnesium
Thickness of steel sheet
0.3-0.7mm
Color of the coating
White grey, Sea Blue, Red, etc
Type of sheet Coating
PVDF, HDP, SMP, PE
Type of base steel sheet
Hot-dip galvanized, Al-Zn coated

There will be no further notification if the appearance or parameters of our products are modified. Thanks.
