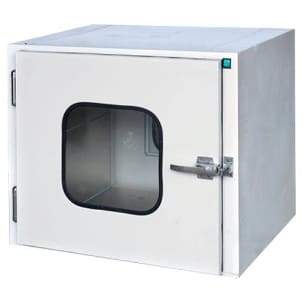

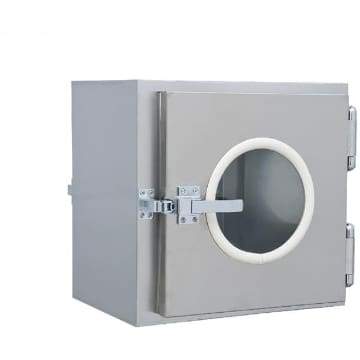

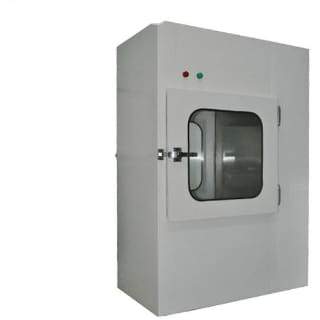

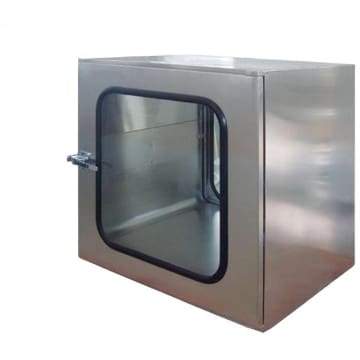

Pass Box Clean Room Pass Thrus

APM-USA

$2,300.00
SKU: P4222S

Product Description

As an auxiliary device of a clean room, pass box is mainly used to deliver small objects between clean area and unclean area. In order to reduce door’s opening times of clean room, it is suggested to reduce the pollution of the clean area.

Purifying transfer window may transfer materials, equipment and tools under the protection of Class A environment. Materials, equipment or tools which have been purified may be delivered to the aseptic area, mainly from Class C area to Class B area. As to user’s demand, the purifying transfer window can be equipped with UV germicidal lamp or ozone generator sterilization system.

Model
Outside dimensions
Inner dimensions
Work area cleanliness
Rated airflow (m/s)
Ultraviolet sterilization light (w)
Noise level (dB)
SINO1
800*660*800
600*600*600
100 (A)
0.45
8
65
SINO2
1000*860*1000
800*800*800
100 (A)
0.45
8
65
SINO3
1000*860*1350
800*800*800
100 (A)
0.45
15
65
SINO4
1200*1060*1550
1000*1000*1000
100 (A)
0.45
8
65
1.±10% allowed for initial resistance
2.Any size can be customized

There will no further notification if the appearance or parameters of our products are modified.
