1 Kg Bag Packaging Machine

APM-USA

$8,900.00
SKU: APM-USA-ACS-1092

Product Description

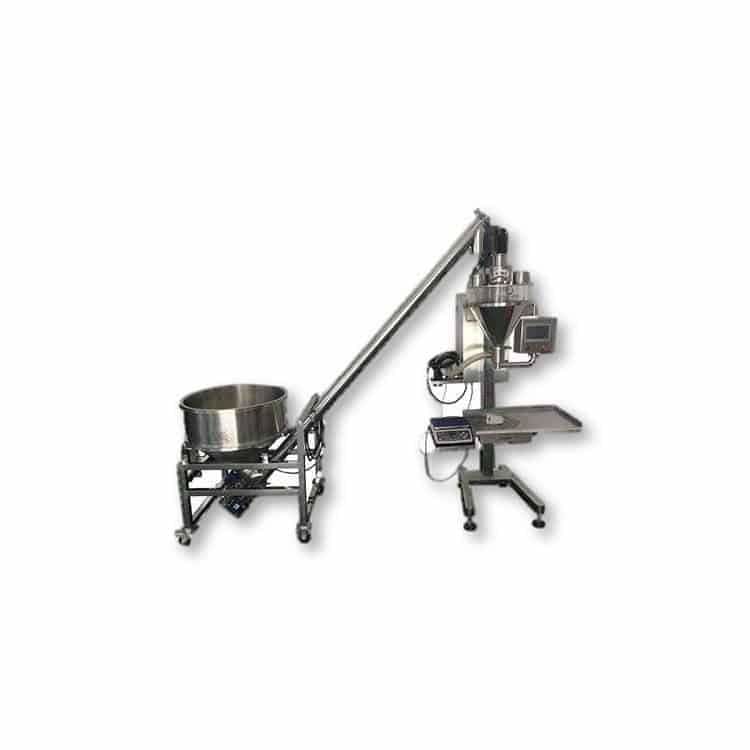

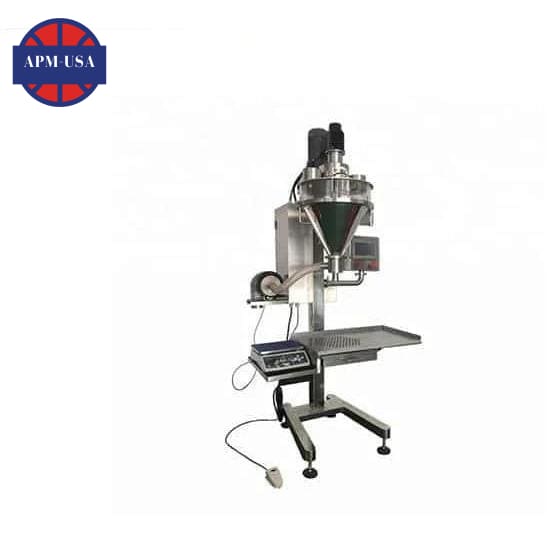

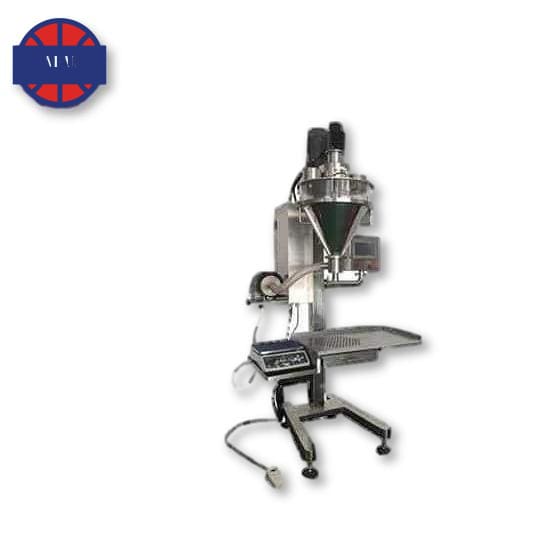

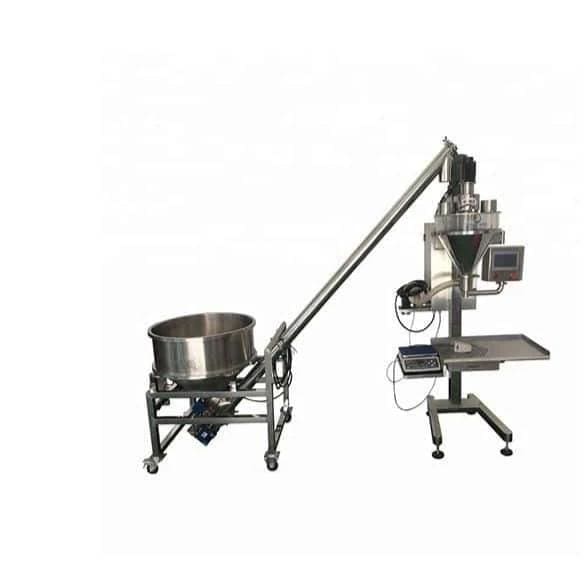

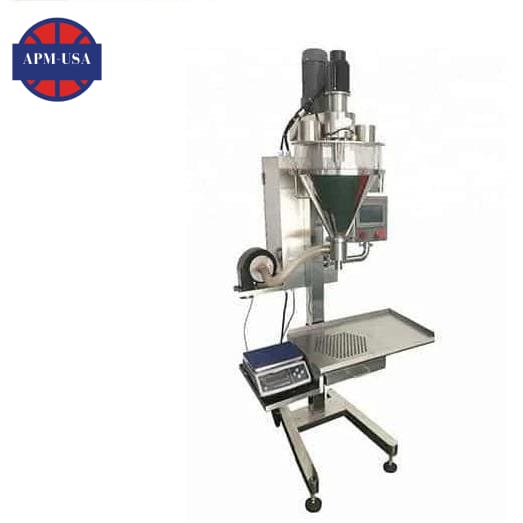

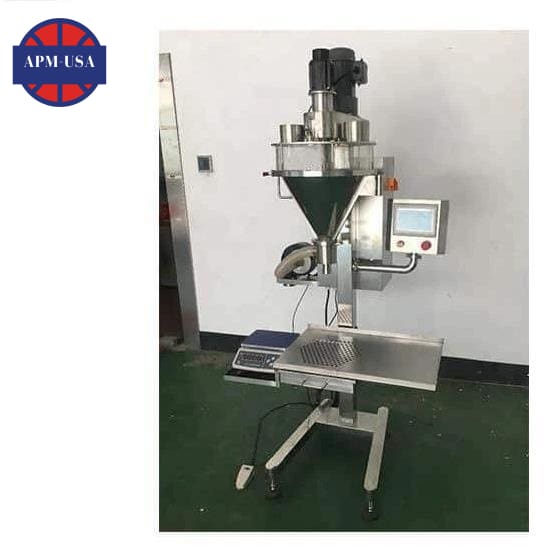

Semi-automatic dry chemical powder filling and sealing machine

Welcome to selected DJBR Semiautomatic Auger Filling and Packaging Machine which produce from APM Pharmaceutical Equipment Development Ltd.The machine is mainly by combination of filling equipment's , transparent and open style's hopper , column and electronic control system.( The sealing may change by customers )The whole body is made of stainless steel ; The Chinese/English is displayed in touch screen. HMI using PLC and touch screen ; It designed in terms of National "QS" and "GMP" standards ; The servo motor drive control the filling system , The geared motor made from Taiwan control the mixing system to keep the stable performance and high packaging accuracy ; The combinations of whole sealing machine , stainless steel's body and PMMA material box made the clean easy ; The height adjustable working table ; Ten kinds of packaging parameters can be store ; For the dusty material's packaging , we can add a dust collect for cleaning ; The machine is suitable for many kinds of size and powdery material's packaging through changing the auger attachment .

Technological Parameters

Model
DJBR
Metering Mode
Auger filling , Electronic-sensing weighing feedback
Package Weight
100-3000g changeable( by changing auger attachment)
Package Accuracy
±0.3-1%(according to the material )
Packaging Speed
10-45bags/min
Power Supply
380V 50Hz/60Hz (Customizable 220V's motor)
Hopper Volume
50L
Total Power
1.3Kw
Overall Dimensions
1200×800×2150mm
Operational Style
PLC control system ,5.7 inch colorful touch screen

All data are used for reference only. According to the condition of material, there will be no further notification if any modification.
