2019 Hot Sell High Quality High Accuracy Screw Filler for Sale

APM-USA

$38,000.00
SKU: P2467S

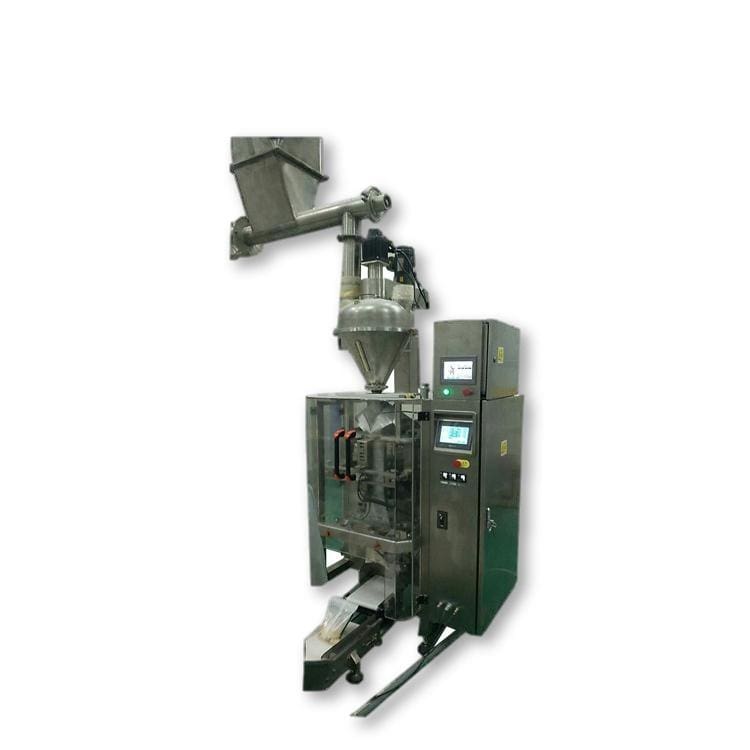

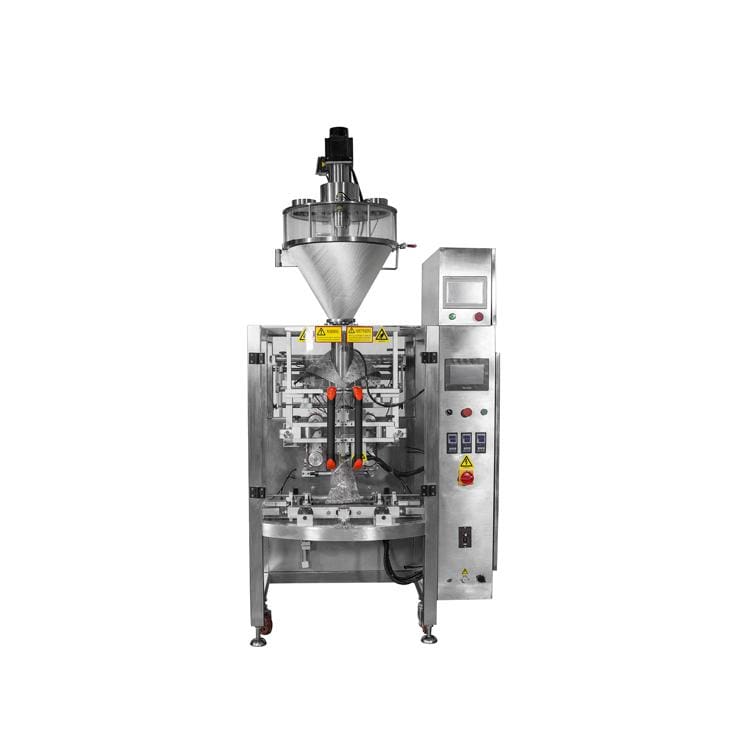

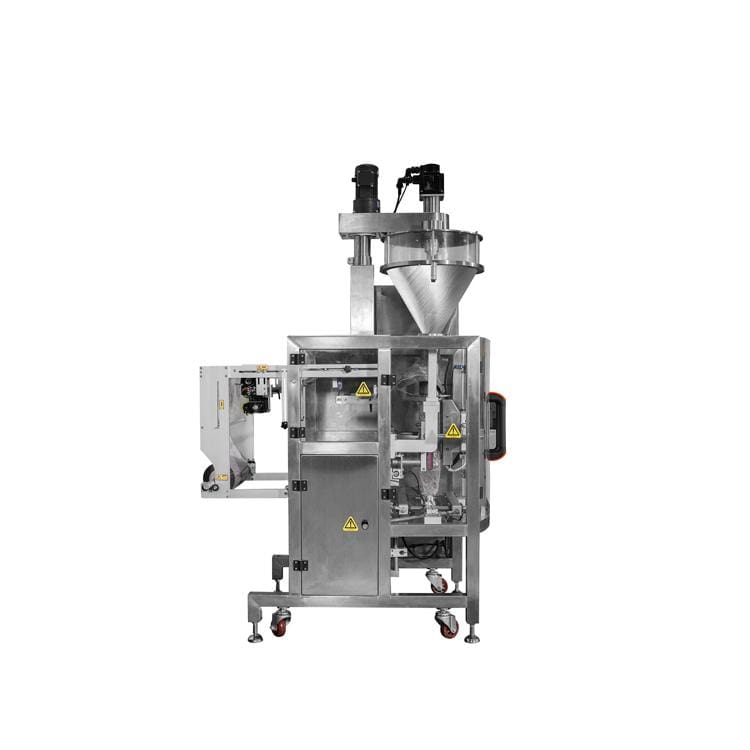

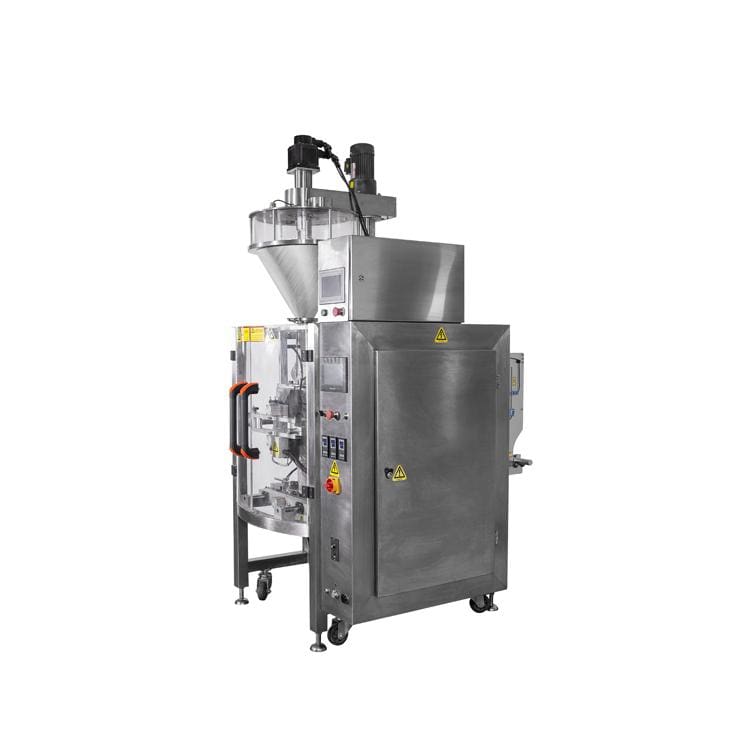

This vertical bag fully automatic packaging machine, this machine can finish bag making, measuring, filling, filling nitrogen, code, cut bag, etc. Suitable for packing powdery product such as milk powder, mono sodium glutamate, solid drink, white sugar powder , glucose, coffee powder , feed powder , pharmaceutical, pesticide, solid powder, granular additive, dyestuff, etc.

Working states operation messages shows in Chinese/English by touch screen, recipes can be saved.


Cutting position & we-tracking can be adjusted through touch screen during the continuous running.


Temperature controller is used, difference in temperature range is in 3 degree. Dent form sealer to seal hard.


Air-proof configuration is used, low noise, free dust, especially sued to pack powdery.


Auger is derived by servo motor, air-proof, gas-flushing and open-side filler.


Multiple bag types are available, for instance, pillow bag, stand-up bag, carrying bag, etc.


The way of using is tile surveyor and can be adjusted.


The functions of trouble warning, for example: material being cut, safe-door being unlocked, film departed, and coding ink out, etc.

Machine Model

SN-3B(250)

Metering Mode

Auger filling , Electronic-sensing weighing feedback

Bag size

W100-250mm L100-350mm

Package Weight

50-3000g

Package Accuracy

±0.3-1%

Packaging Speed

25-60bags/min

Power Supply

380V/220V 50Hz/60Hz

Air pressure

6-8kg/cm

Total Power

6KW

Total Weight

800Kg

Overall Dimensions

1500X1200X2600mm



There will no further notification if the appearance or parameters of our products are modified. Thanks.
