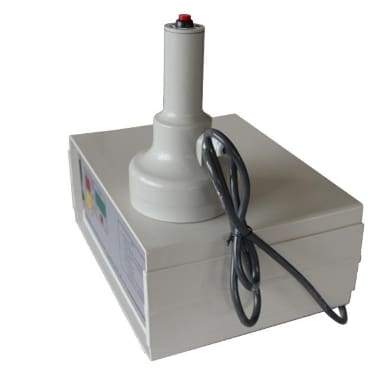

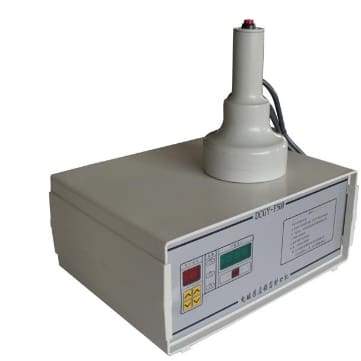

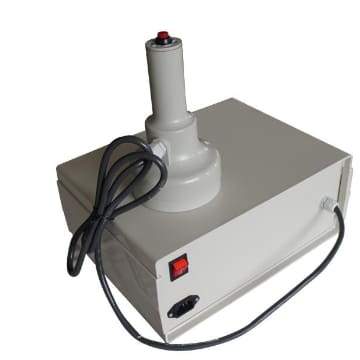

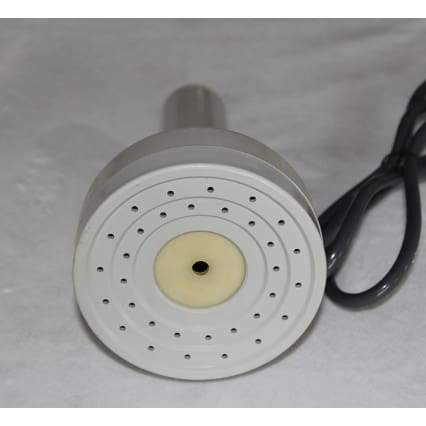

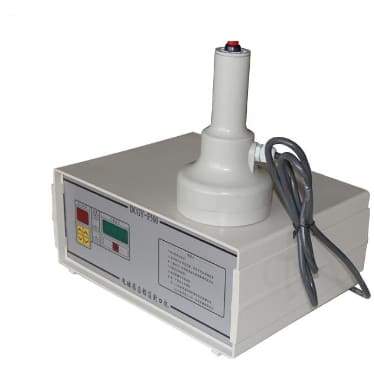

Hot Selling Bottle Aluminum Foil Glass Jar/plastic Bottle Cap Sealing Machine

APM-USA

$600.00
SKU: APM-USA-ACS-2720

Product Description

This machine is applied in the area of pharmaceutical, chemical, food, beverage, make-up and others, used for the aluminum foil sealing of the non-metal packing containers, like plastic or glass.

Working Principle:

The machine system using electromagnetic induction heating principle, a magnetic field is the use of high-frequency electric current through the inductor, when the magnetic field lines through the aluminum foil sealing material, instantaneous produces a large number of small vortex, the aluminum foil to high fever, the melt, melt compound on the aluminum foil to paste on the seal of bearing sealing material, to reach the purpose of quickly sealing.

Notify:
The temperature rising condition of this machine had been upgraded, but it is still one type of handheld structure machine, the cooling facility is not better, so if use this machine for a long time without break is not suitable. If the request of sealing production capacity is large, user can buy and use more sets of this machine, and use these machines in turn, so solve this problem.

Model
DCGY-F300
DCGY-F500
DCGY-F1000
Input Voltage
AC220V/50Hz~60Hz
Input Power
1200W
Working Frequency
50Hz~80Hz
Ambient Humidity Of Use
600W
Ambient Temperature Of Use
90%PH below(no condensate)
Sealing Diameters
15~50
20~100
70~130
Sealing Type
Handheld
Dimension
260*345*165mm
Shell Protection Grade
IP20
Safety Standard
GB15579.1995
Capacity Counting Range
0-9999

There will be no further notification if the appearance or parameters of our products are modified. Thanks.
