September Procurement Section new Fully Automatic Sheet Press Factory Price

APM-USA

$16,800.00
SKU: P2931S

Product Description

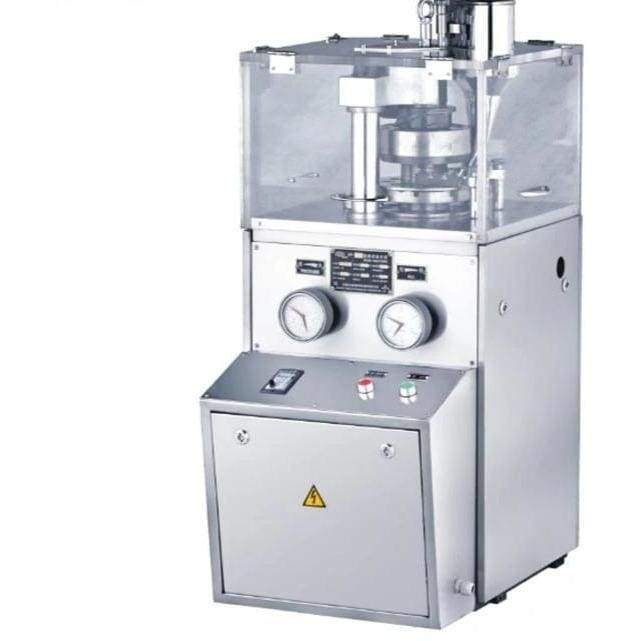

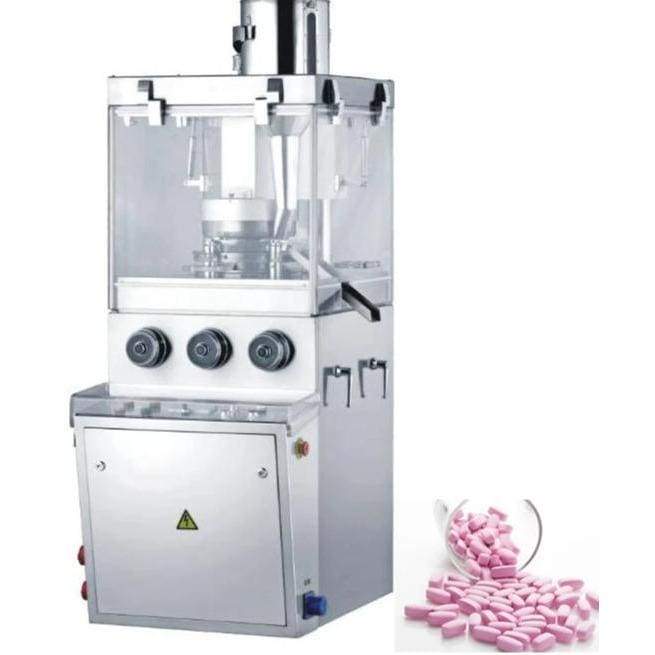

               This machine is a single-press type, continuous automatic tablet press for pressing the granular raw material into the round tablets and irregular tablets etc. It is especially caters for small-batch production.
This machine is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
         In addition, it is equipped with the overload protection devices. The powder absorbing box is installed on one side of the machine. It can absorb the powder from the operation of the machine via suction port to avoid bonding and clogging, and it also can recycle the raw material for reproduction.

Features.

  1. The outside part of the machine is full-enclosed. The material of the cover and internal table are made of stainless steel. The surface of  turntable is specially disposed to keep the surface luster  and prevent it from being polluted, meeting the GMP requirement.
  2. It has transparent windows so that press condition can be observed clearly and windows can be opened for cleaning and maintenance. The lay-out of all the controllers and the operate parts is reasonable.
  3. All the drive devices are located inside the machine so keep the machine clean.
  4. The machine can press not only round tablets but also different geometrical shape tablets,  double-layered and annular tablets, the tablets may have the impressed on both sides.
  5. Overload protection unit is included in the system to avid the damage of the punches and apparatus, When overload occurs, the machine will stop working automatically.
  6. Powder absorbing device could absorb the powder in the tablet-pressing room.
Model
ZP-17
Punch dies quantity
17 sets
Max. pressure
60KN
Max. tablet diameter
20mm
Max. depth of filling
15mm
Max. tablet thickness
6mm
Turret speed
37 rpm
Production capacity
40,800 pieces of tablets per hour
Motor
2.2KW, 950rpm, 380V/220V, 50Hz/60Hz
Dimension(L*W*H)
650*900*1500mm
Weight
1000KG
Remark

Model
ZP-17E
ZP11
ZP1100
ZP37
ZPW125
ZP33
Punch dies quantity
17
11
39
37
25
33
Max. pressure
60
100
80
80
80
40
Max. tablet diameter
20
45
25
13
16
12
Max. depth of filling
15
45
18
15
18
18
Max. tablet thickness
6
20
7
6
7
Turret speed
37
12
65
14?35
40
45

Production capacity

40,800

7920

152100

15.5

88800

43000--110000

Motor
2.2 KW950rpm, 380V/220V, 50Hz/60Hz
5KW950rpm, 380V/220V, 50Hz/60Hz
4KW950rpm380V/220V50Hz/60Hz
4KW950rpm380V/220V,50Hz/60Hz
4KW950rpm380V/220V,50Hz/60Hz
2.2KW380/50 HZ/HZ
Dimension(L*W*H)
650x900x1500
1100×1000×1900
960×910×1750
1500x1300x1650
1050*900*1880
930x900x1600
Weight
1000KG
2000
1650
1950
2000
850
