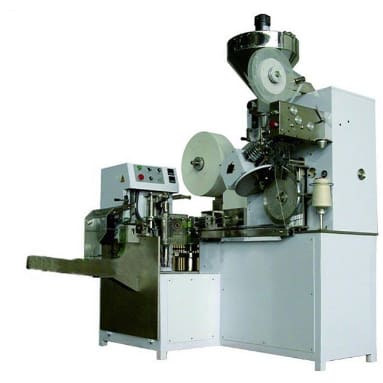

Full Automatic Tea Packing Machine with Thread and Tag

APM-USA

$70,000.00
SKU: P4018S

Product specification

DXDC8IV model tea bag packing machine is new developed, with thermal sealing and multi-functions, it's the necessary for bag-type drinking's automatic packing.

With the innovated external packing method, the bag shape is beautiful. The transmission system is controlled by the variable frequency, the intermediate plate-type thermal sealing is adopted for the outside bag, and the cartoning is automatic.

The machine can be used for the thermal sealing for many kinds of films, including paper/plastic, plastic/plastic, plastic/Alu/plastic/ and paper/Alu/ plastic, etc.

Application: Heath care tea, antihypertensive tea, liver protecting tea, beauty tea and slimming tea
Packing speed
105±5bags/min
Width of inner bag's filtering paper
125mm
Packing volume
6cm3
Inner bag size (L×W)
62.5 mm×50 mm
Outside bag size (L×W)
70 mm×80 mm

Label size (L×W)
24mm×26mm(Thermal-sealing label)
24 mm×28 mm (Thermal-sealing label for tear open)
Length of label wire
210mm

Material of outside bag
Many kinds of compounding material can be used for the outside, including BOPP20/ VM-PET12/ PE40, paper/ PE, matting OPP20/ BOPP35, etc
Power supply
AC  220V/380V
Power
2.5KW
Dimension (L×W×H)
1840mm×1290mm×1890mm(Standard configuration)

There will be no further notification if the appearance or parameters of our products are modified. Thanks.
