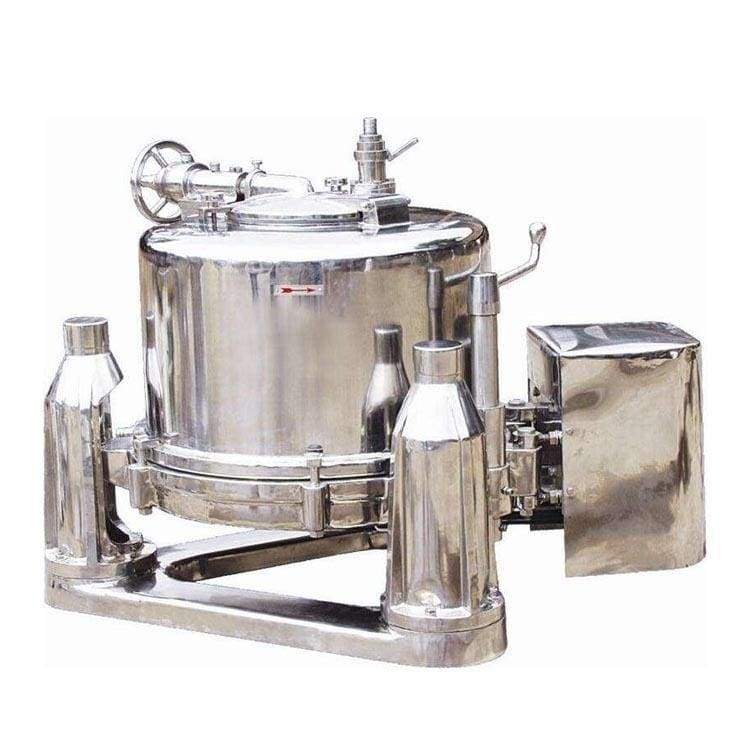

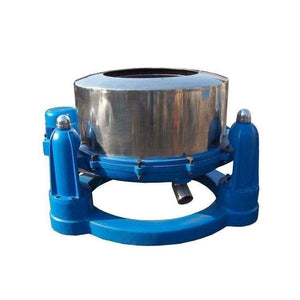

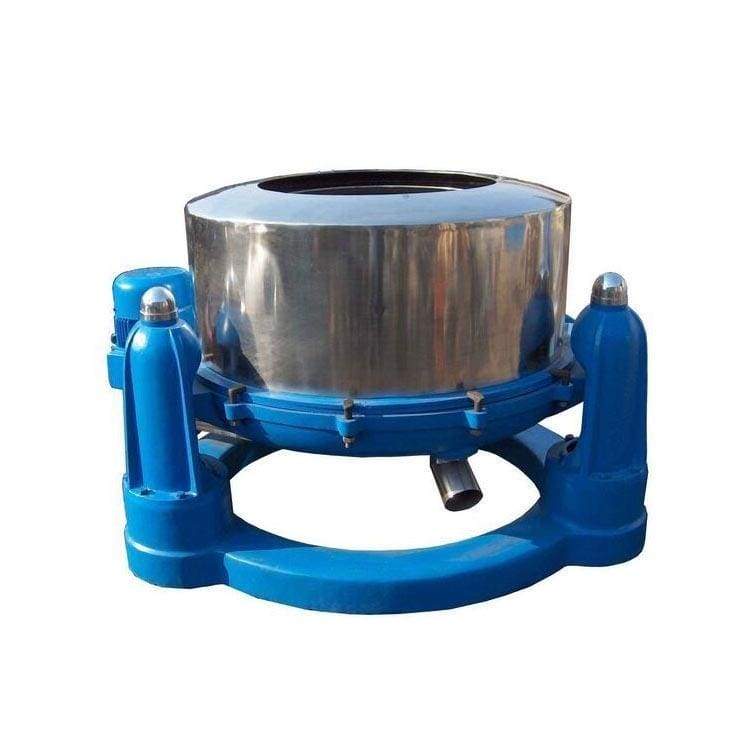

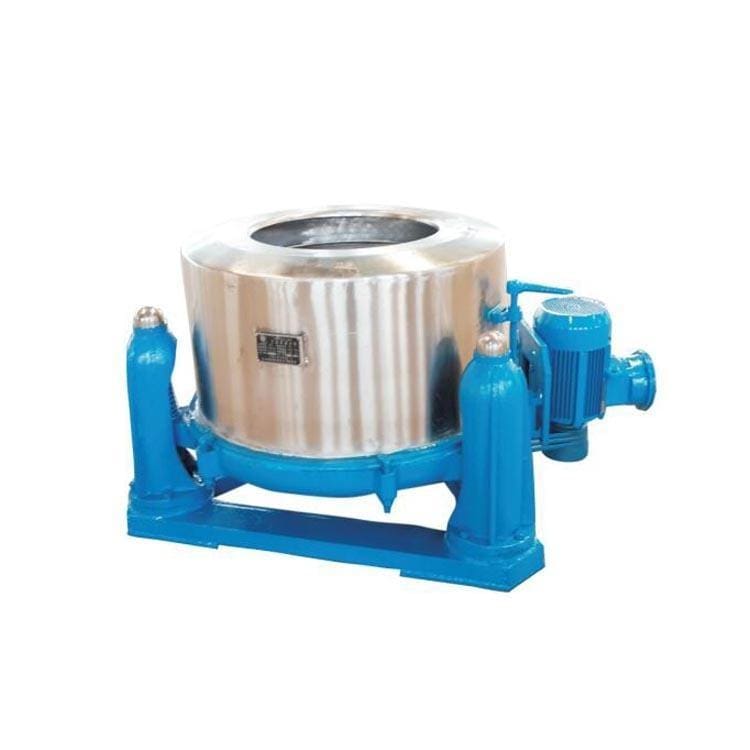

Three Foot Centrifuge used for Food Additive Dewatering Equipment

APM-USA

$30,000.00
SKU: P3408S

Product Description

The machine is used for the suspension containing fine/ medium-grained particles, which can be granular, crystal or fibrous, etc., and for the separation of toxic flammable material with high viscosity and fine particle.

It is widely used in the industries of chemical, pharmaceutical, food, light industry, environment protection, etc., including gypsum, oxalic acid, thiamine, glauber salt, copper sulfate, potassium chloride, borax, fuel, mono sodium amalgamate, various resins, food additives, vitamins, antibiotics, starch, sugar, copper, zinc, aluminum, mineral product and metal refining etc..

Working Principle:
Motor which is controlled by the frequency converter drives the belt wheel to transfer the power to the drum through the triangle belt, to keep the drum rotate around its own axis by high speed, to form the centrifugal field.

After material from the top feeding pipe enters into the centrifugal field in the drum, the centrifugal force will keep the material distributed on the drum wall to have the separation.

The liquid phase can permeate solid materials, screen's slits and the drum wall hole, be splashed into the shell space, and be discharged from the liquid outlet on the bottom. While the solid phase material will be remained in the drum.

After the dehydration, drum's speed is reduced, the solid material will be removed by the scraper, and be discharged through the drum's top outlet.

Technical parameters

SGZ1000
SG1000
SGZ1250
SG1250
SGZ1600





Bowl
Inner diameter/mm
1000
1250
1600
Effective height/mm
500/420
630/500
800
Filtration area/?
1.5/1.3
2.5/1.8
4.02
Effective volume/L
200/140
398/270
820
loading /Kg
240/200
500/350
1000
Rotating speed r/min
1200
1000
800
Separating factor
800
700
572
Motor power/Kw
<100
<100
<100


Discharging Method
Hydraulic Scraper

Pneumatic Scraper
Hydraulic Scraper

Pneumatic Scraper
Hydraul ic Scraper
Pneumatic Scraper
Pneumatic Scraper
Pneumatic Scraper
Air source pressure/Mpa
0.3-0.6

0.3-0.6

0.3-0.6
Working oil pressure MPa
1-1.2

1-1.2

1-1.2
Motor power/Kw
15
18.5
37
Dimension(L×W×H)/mm
2200×1720
×2300
2150×1700
×1800
2650×1860
×2500
2600×1860
×2500
3250×2500
×2800
Weight /Kg
3200
4200
7500

There will no further notification if the appearance or parameters of our products are modified. Thanks.
