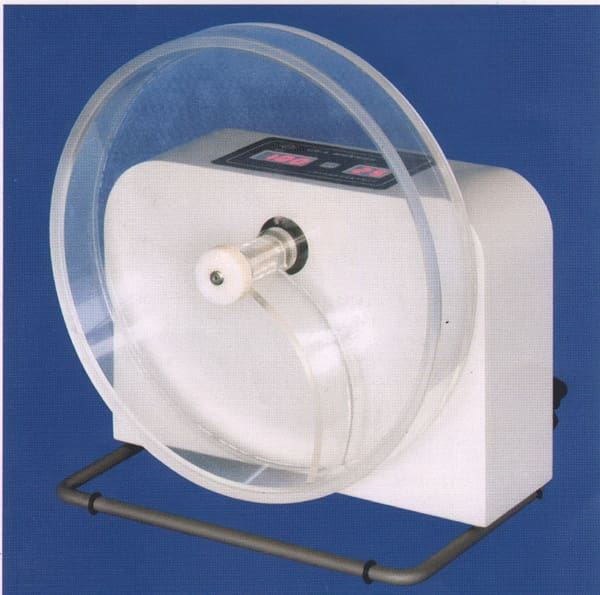

Cs-4 Tablet Friability Tester

APM-USA

$4,000.00
SKU: P5538S

CS-4 Tablet friability tester

CS series of instruments are used for detecting friability/abrasion of tablet.

Application:

National standard (Chinese codex)/2005/

Corporate standard (Tablet friability tester)Q/12XQ0189-2004

Features:

1. Single drum runs.  Auto stop at timing point.

2. The drum is made of high quality hyaline acryl.

3. The speed and revolution of the drum is constant. Either preset or real data is displayed on the LED/

4. A MPU is used to control all operation, high accuracy is achieved in testing rotary speed and circle number.

5. Automation: auto-test, auto-diagnose, auto-alarm

Specifications:

Cylinder number                                              1

Cylinder radius                                                ?286mm

Cylinder depth                                                 39mm

Tablet fall height                                             156mm

Rotation count                                                 100r

Rotation count accuracy                                  ±1r

Rotation speed                                              25rpm

Rotation speed accuracy                              ±1rpm

Power                                                       220v/50Hz/20W or 110V/60Hz/20W

Dimension                                                 300x200x330mm
