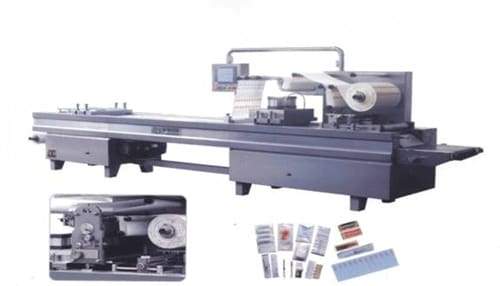

Dpb-420 Flat-plate Soft (hard) Plastic Blister Packing Machine

APM-USA

$4,000.00
SKU: ACE-SOR-EIS-92

DPB-420 Flat-plate soft (Hard) Plastic Blister Packing Machine

Main Applications:

This machine is widely used in paper-PE blister packing for medical appliances (such as syringe needle, injector, pledget).

It can continuously finish the full processing of heating in matching for PE film, Forming the blister, Filling appliances, sealing, batch number printed, vertical and cross cutting and transfer the final product.

This machine adapts PLC controller, human-machine interface, servo system, cursor system, and can adapts with on line printing system.

1.Adopt servo motor with chain to be traction device, adjustable stroke.

2.Equip with cursor device to ensure the packing pattern locate well and truly.

3.The position of printing and slitting could be adjust freely.

4.Mould is located by male pin, and is convenience to change mould.

Technical specification?

Package scope:

Suitable for package of many sensitive anti-pollution materials and medical apparatus and instruments, Chinese and western medicine, electron, chemical product and foodstuff.

Capability(times/minute)

6-16 (1) 20 syringe needles/time (2)1ml 11 injectors/time, 2.5ml 10 injectors/time, 5ml 9 injectors/time, 10ml 8 injectors/time

Packing Frequency:

6-16 times / min

Package Materials:

Paper-plastic, Aluminum-plastic, Plastic-plastic and other Compound Film suitable for heat sealing(or the hard plastic less than 0.2mm), width of upper film is 400mm and the lower is 420mm.

Maximum inner dimension(mm)

375x375x50(LxWxH)

If need more larger forming areas, can be designed in addition.

Out Dimensions:

5400x980x1800(LxWxH) can be designed as user’s requirements

Power(kw):

9.5kw

Weight(kg):

1700kg
