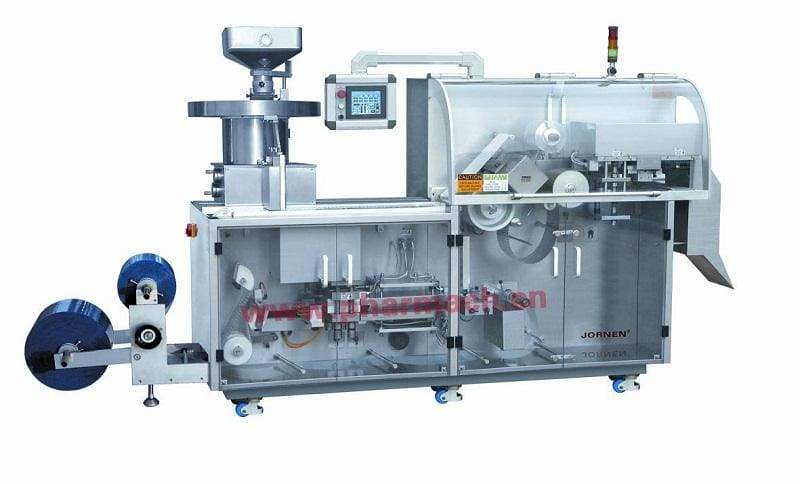

Dph 190 Blister Machine
DPH 190 Blister machine
1.Adopts platen forming,rotary sealing;it is an innovative and efficient Blister Machine.
2.The machine accommodates forming material reels up to 600mm in diameter and a waste material trimming cutter,
which allow production runs of approximately 90 minutes;therefore reducing the material replacement frequency.
3.Equipped with integrated forming material splicer to enchance efficiency.
4.Servo-regulated drive achivevs big scale of adjustment in draw off length.
5.Innovative structure enables alu\pvc(thermal forming) and alu\alu (cold forming)converts at any time.No
need for additional pars;change only the formats.
6.Automatic format positioning system achieves straight forward format change over.
Main Technical parameters:
Max.speed: alu\alu100 punches\min,alu\pvc200 punches\min
Max.output: 450 blisters\min(alu\pvc blister size 57mm*80mm)
Max.forming area: 175mm*180mm
Max.forming depth: 12mm
Material : Max.width: 190mm
Machine power: 15kw
Machine dimension: 3800mm*950mm*2000mm
Machine weight: 2000kg
