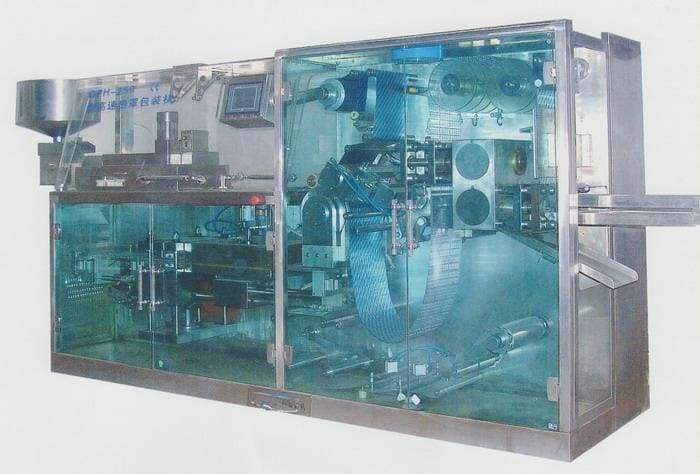

Dph-250 High-speed Blister Packing Machine

APM-USA

$4,000.00
SKU: ACE-SOR-EIS-106

DPH-250 High-speen blister packing machine

  1. Product specify

DPH-250 High-speen automatic blister packing machine is a Hi-tech blister packing equipment which has gained two advanced patented technologies (Patent NO.:200620106214.8 & 200620106215.2). it has been rewarded as the provincial scientific and technological achievement product. Its punch frequency is as high as 60-160 times/minute, thus gains a high productive capacity. With higher efficiency and lower cost, this machine provides a new choice for medicine packing in pharmaceutical industry.

  1. Feather

1) With PLC programmable controller, stepless frequency inverter, man-machine interface, it obtaines a high automation,

2) With flat plate positive pressure blow and low temperature for forming (

120°C), it obtains an elegant and solid blister hardness. The net vein sealing roller improved the sealing speed greatly.

3) Scrap has been reduced greatly by the adoption of cross punching device. Packing materials can be saved more than RMB 150,000 (appr. U$ 22,060) per set annually.

4) Forming and punching frequency has been greatly has been greatly improved by using shift gears to meet the production requirements of various blister pack sizes. (such as forming 3 pieces in vertical version, the ratio of forming times and cutting times is 1:3; if for 4 pieces, the ratio of forming times and cutting times is 1:4)

  1. Main technical parameter

Punch frequency(times/min)

60-160

Max.production capacity(blister/h)

28800(according to the standard plate 80 x 57 mm)

Power

380V/220V 50Hz 9KW

Main motor power(kw)

1.5

Air pressure(mpa)

0.4-0.6

Packing materials(mm)

PVC 0.25-0.50 x 250 PTP0.02-0.035

Maximum diameter of packing material(mm)

PVC?400 PTP?280

Maximum forming area and depth(mm)

240 x 240 x 12

Travel range of forming traction (mm )

100-250

Travel range of punching traction(mm)

20-100

Water consumption(L/min)

3.2

Gas consumption(L/min)

300

Overall dimension(mm)

2600 x 850 x 1780

Weight(kg)

2000
