Dpr-160a Tropical (al/pl/al) Blister Packaging Machine

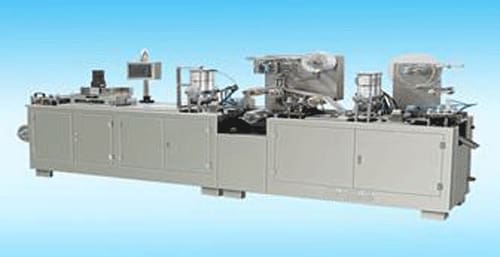

DPR-160A Tropical (AL/PL/AL) Blister Packaging machine
DPR-16A Tropical (AL/PL/AL) Blister packaging machine is the initial product in China and got two patents of the state(patent No.:02139101.8 02139100.X). It can be used for three kinds of AL/PL, AL/AL, AL/PL/AL. different packaging and up to the purpose that a machine three uses. The machine have got appraisal of new products achievement of ZheJiang province in Nov.2001; obtained the title of national-level key new products in July of 2003; Obtained “second prize of scientific and technological progress of Wenzhou city” in December of the same year, our machines were already used by every large pharmaceutical factory at home and exported to America and Europe, and also got users’ favorable comment at present.
- Mechanical drive: The advanced three-ring decelerator was adopt in the machine instead of the worm drive, it concentric with the principal axis to error of the transmission.
- Electric apparatus system: Adopting German siemens PLC controlling system of Japan Omron PLC controlling system result in that every engineer location of transmission of the machine is procedure.
- Detection system: It will according to custom demand adopt video detector that can modify of the 5%different pharmaceutical sample of the shape and delete it automatically, or adopt the digital calculating equipment of optic fiber that can detect the number of medicines.
- Pneumatic system: Adopt photoelectricity control and can preprogram with PLC that make every organization of operation accurate, also enable packing the products in many workers location and the operation at a long distance. It guarantees the stability of moving ahead simultaneously.
- Photoelectric equipment: Using photoelectric indexing device makes to be clear and pleasing to print pictures and texts, and improve the level of the packing of products.
- Combined body: It is convenient to enter the purification workshop already fitted up smoothly for the user.
7.All the parts is made of stainless steel and prevent the across infect which can meet the “GMP” standard.
Cutting frequency: 20-30(steplessly adjustable) Times/min
Travel adjusting range: 40-120mm
Max. of forming area and depth of PVC: 150*120*18mm
Max. of tropic Aluminum forming area and depth: 140*110*20mm
PVC forming power(upper): 1kw PVC forming power(lower):1kw
Hot-sealing power of Alum, -Plastic: 1.2kw Hot-sealing power of tropic Aluminum: 1.2kw
Power of main motor: 1.1kw Capacity of air compressor: ?0.2m3/min
Size of wrapper(width): Medical PVC160mm\Alum. foil PTP 160mm\Tropic Aluminum 160mm
Overall size: 4312*700*1400mm
Size of encasement: 2200*700*1400mm\2000*700*1400mm
