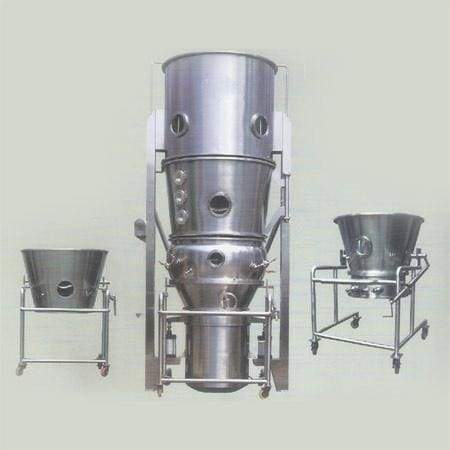

Dwy Series Multifunctional Pilling Coaters

APM-USA

$4,000.00
SKU: ACE-SOR-EIS-61

Main properties:
DWY series multifunctional pilling coater is a multifunctional fluid bed equipment that integrates pilling and coating with tangent spray, coating with bottom spray and granulation with top spray.
Features:
Combines multifunctional functions of pilling, granulation, coating, mixing and drying, reduce steps of techniques, process of contamination, and the degree of labor.
Application:
Tangent spray: pilling, covering, coating
Top spray technique: granulation
Bottom spray technique: coating
Tangent spray technique: the material on the fluid bed is pushed upward by the hot air flow, it will do regular spin rolling movement the specially designed container with the influences of centrifugation of the rotary plate, centripetal force of material container, the air flow back and gravity. The liquid sprayed at a tangent direction make the material into core of pills, which are coated by powder from tangent sprayer to get required tighten fine pellets.
Top spray technique: the material on the fluid bed forms upward. Flowing state pushed by the hot air flow, then combined into granules gradually by the liquid sprayed from upward, and irregular granules will be gotten after drying.
Bottom spray technique: the material is pushed upward from the bottom of the flow leading tube by hot air flow and sprayed back, coating liquid is sprayed from bottom of the flow leading tube, coated onto the materials moved in the same direction to achieve the coating purpose.
Technical Parameter
item
Model
Unit
DWY-3
DWY-5
DWY-15
DWY-30
DWY-60
DWY-120
DWY-200
capacity
Top spray
Kg/batch
3-6
5-12
10-30
20-80
40-150
80-250
200-400
Bottom spray
Kg/batch
3-4.5
5-7.5
20-30
40-60
80-120
150-200
200-300
Tangent spray
Kg/batch
1.2-4
4-6
10-20
20-40
50-80
100-160
160-220
Volume of
container
Top spray
L
22
40
100
280
480
720
1000
Bottom spray
L
11
20
50
140
210
310
450
Tangent spray
L
15
30
70
180
250
530
760
Power of main fan
kW
3/4
4/5.5
7.5/11
11/15
15/18.5
22/30
37/45
Power of rotary plate fan
kW
0.75
1.5
3
4
5.5
7.5
11
Power of electric heating
kW
9
15
21
29.5
51.5
85
120
Steam
Consumption
Kg/h
40
70
99
210
300
420
530
pressure
Mpa
0.4-0.6
Compressed
air
consumption
M3/min
0.5
0.5
0.6
0.8
1.1
1.3
1.5
pressure
mpa
0.4-0.8
moisture
%
?2
Working temp.
?
Adjustable from indoor temperature to 120?
Collection of materials
%
?95
Noise
db
?70 (suction fan is separately treated)
Dimension
Of main
machine
?
mm
450
550
700
900
1100
1400
1800
H1
mm
2190
2650
3050
3550
020
4500
5430
H2
mm
1740
2200
2520
3020
3380
3960
4800
B1
mm
400
500
550
650
800
900
1000
B2
mm
720
980
1130
1330
1530
1830
2030
