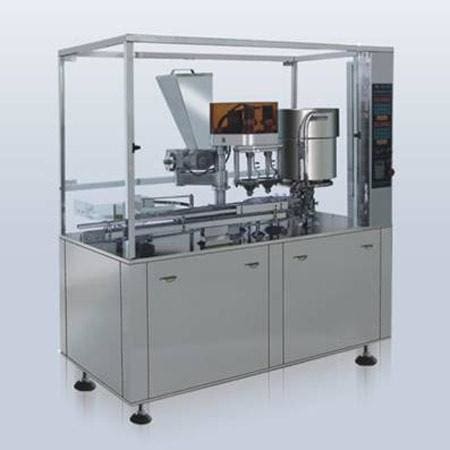

(fg-kfg2-a) Kfg Series Powder Filling Machine

APM-USA

$4,000.00
SKU: P4691S

(FG-KFG2-A) KFG SERIES POWDER FILLING MACHINE

Brief introduction?

Fg-kfg2-a type powder filling machine is one kind of sterile powder filling machine which our company developed initially. Its volume is small, same direction in bottle inlet and bottle outlet. The filling and stoppering is conducted in the same graduator. With its compact structure, it is welcomed by customers with small production capacity and small room size. We have large number of customers home and abroad using this kind of powder filling machine.

Production capacity:

7Ml vial filling dosage 1g 100~120 bts/min

Working principle:

This machine consists of turntable, graduator, filling head, stoppering device and bottle outlet track. The turntable and stainless steel chain is used to transfer the bottles, and the stepping motor is used to drive the filling auger.

Filling process: the chain sends the vial to the graduator, then the powder conveying screw and the filling auger fill the powder into the vial according to preset step number. The stoppering device also add stopper on the vial when filling is finished and vial sent to stoppering position during the stop time of the graduator.

Characteristic:

Small volume?suitable for pharmaceutical companies with small production capacity and small room size.

Different type of filling auger meets requirements of different powder fluidity

Single chip system control the whole process, high automation degree

Can adjust the filling dosage without stopping the machine

Touch panel control can set the filling dosage without stopping the machine

Speed controlled by inverter

Falling bottle auto reject; no bottle, no filling; no stoppers, auto stops; insufficient stoppers alarm

Auto counting function

2 heads filling, 2 heads stoppering

CE certified, standard electric installation, safety guarantee on operation

Auto stop filling when filling auger touches filling nozzle and alarms

Easy to change the change part, filling dosage adjustable

Optional acrylic glass hood, laminar flow, sealed air outlet device

The whole machine is designed according to GMP requirements

Technical parameters:



Suitable bottle range: 7-250ml tubular or molded vial.

Power supply: 380v 50Hz

Power consumption :1kw

Filling error: ?2%

Auto stoppering ration:99.5%

Speed control by inverter

Single machine noise: ?70dB

Vacuum degree:-6x10-2Mpa  Vacuum qty:14m3/h

Weight: 400kg

Dimension: 1680x1000x1750(mm)
