Gdph-250 Blister Packaging Machine

APM-USA

$4,000.00
SKU: ACE-SOR-EIS-99

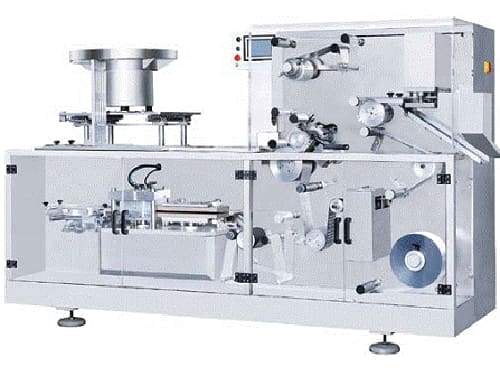

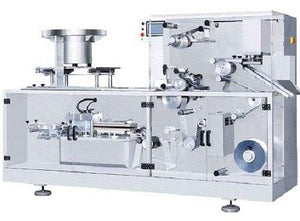

GDPH-250 Blister Packaging Machine

Application:

Meets GMP standard and be suitable for different sizes and specifications packing of capsules, tablets, sugarcoated tablets, irregular tablets, pills and milk tablets etc.

Function:

Formed by plate positive press, sealed by heating roller, with high efficiency.

Can provide optional feeding device as per different requirements.

Save packaging material, no side cut;

Auto lot number printing and perforating;

Changeover and adjustment easily;

PLC control system, HMI, high speed with invertor.

Technical parameters:

Date / model

GDPH-250

Max output (blisters/min)

400 plate/min

Max. cutting frequency (cuts/min)

100 times/min

Max. forming area

220x260mm

Max. forming depth

10mm

Max. stepping distance

220mm

Packaging material

PVC/PP/PVDC

250x(0.25-0.35)mm

Aluminum foil

250x0.02mm

Air consumption

450L/min

Water consumption

3.2L/min

Total power

11kw

Dimension

2800x1000x1700mm

Net weight

2300kg
