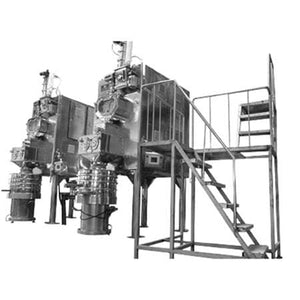

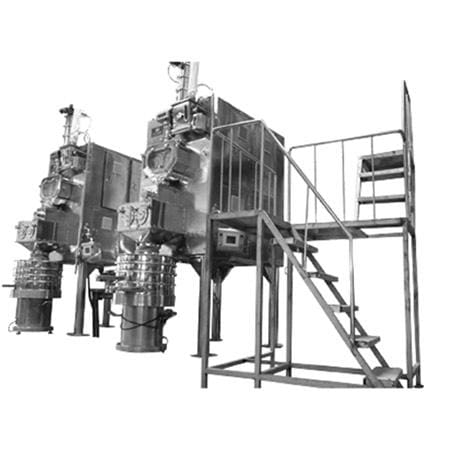

Gzl-s Dryer Granulating Roller Compactor

APM-USA

$4,000.00
SKU: ACE-SOR-EIS-67

Features:
This machine use the double-screw roller feeding system, the special cantilever roller design then increase the flexible of equipment, discharge and clean easily. Only use one hour to complete the whole clean working, discharge the machine without any special tool. Provide several motor speed and the roller pressure to
Satisfied the user’s requirement. Users can choose the different structure according to the vary product feature, meanwhile can setting with the wall-through design, reduce the working area and the possible of pollution.
Working principle:
By mixing the powder then use the special feeding machine (pneumatic feeding and the mechanism feeding) can feed the material to the top nozzle, there is a scale on both of the top and bottom of the feeding weight. Via a transverse screw feeding vane pushes material to another lengthways vane and roll them to the bottom roller. For the different of the diameter and rotate speed of the two vanes, powders and the material will become advance-extrusion, if the air can’t be expect efficiently then it’s will appear the broken circumstance. We have the vacuum elimination system to solve this problem. In some examples it can enhance 4-5 times of the production, increase 40% press efficiency. The dropping pieces can be granulate to the required size via the second degree or multi-degree granulator machine. The output granules enter the underside filter machine and filter the eligible ones, the bad ones will re-enter the feeding container to container to granulate by the automatic feeding system. The whole process can be control by the PLC man-machine interface, achieve the closed production.
Technical parameter:
item
unit
GZL-20S
GZL-40S
GZL-70S
GZL-100S
GZL-150S
GZL-200S
GZL-250S
Granule precision
0.4-1.9mm
Max. output
kg/batch
20
40
70
100
150
200
250
Extrusion
t
6
16
16
19
22
25
28
Roller rev
r/min
40
40
45
50
50
50
50
Spiral oar rev
r/min
80
100
150
263
360
360
450
Motor for roller
kW
1.5
3
4
5.5
7.5
11
18.5
Motor of oar
kW
0.55
0.75
1.1
1.1
1.5
2.2
5.5
Motor for granulating
kW
0.75
1.1
1.5
1.5
2.2
3.0
3.0
Power
kW
0.55
0.75
1.1
1.1
1.5
2.2
3.0
Dimension
mm
900*600*1500
1100*800*1600
1250*900*1900
1700*1700*2200
1500*2000*3000
1500*2200*3500
1500*2861*4106
weight
t
0.3
0.7
1
1.8
2.1
2.3
2.5
