Model Dpps170b (alu-pvc-alu Blister Packing Machine)

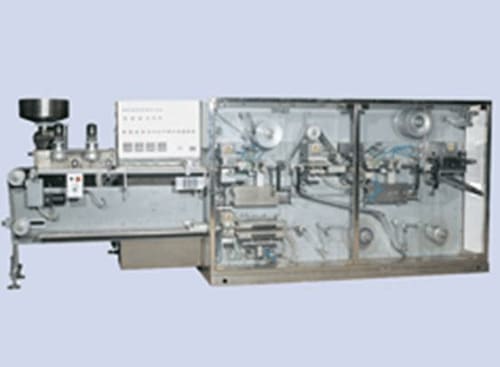

Model DPPS170B (Alu-PVC-Alu blister packing machine)
- Brief Introduction
ALU-PVC-ALU Blister Packing Machine type DPPS170B has wide application in packing field. It can pack various shapes of articles.
One machine finish twice packing.
The forming of PVC use blow, but the forming of ALU use mechanical method.
It owns performing, slicing, detecting and auto compensation functions additionally.
Main Technical Parameter
(1).PackingRange: coated-tablets, capsules, suppositories, ect.
(2). Capacity: max 35strokes/min; Width of PVC:170mm
(3). Max Forming Depth: 10mm
(4). Power: 380V, 3-phase, 50Hz; Power Consumption: 8.5 kw
