Model Dzp-500s Type Flat Paper-plastic Machine

APM-USA

$4,000.00
SKU: ACE-SOR-EIS-102

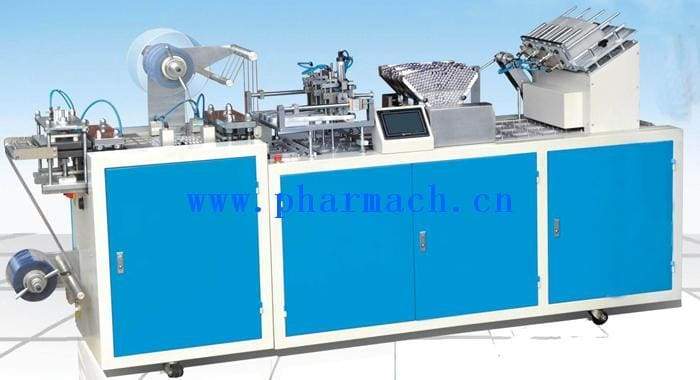

Model DZP-500S type Flat Paper-plastic Machine

  1. Performance feature:

It is a new packing equipment that was improved, innovated and researched successfully by our technicians. It employs man-machine interface, PLC control, encoder support, touch screen operation and automatic counter are employed. And thus its route is adjustable. It works precisely with convenience of operation. Equipped with a friction wheel decelerator mechanical progressive speed regulation, it can work stably.

  1. Application scope:

It is applicable for paper-plastic packing articles of daily use, stationery, minor hardware, cosmetics, medicines, as well as battery, toothbrush, pens, glue, plug base, bearing, etc. to improve the grade of the finished products.

III. Technical parameters:

Model

500S

Packing material

PVC hard piece:(0.15-0.35)x320mm

Paperboard:200g-700g 125x420mm

Applicable requirement

Pressure:0.5-0.8Mpa

Air consumption quantity:?0.3m3/min

Power consumption

380v 50Hz 7kw

Mould cooling water

Running water or circle water consumption 50L/Min

Overall dimension

3600 x 850 x 1500mm (LxWxH)

Weight

1500KG

Production capacity

10-30punches/min

Route scope

50-130mm

Max area of paperboard

500x125mm

Max forming area and dept

310x120x40mm
