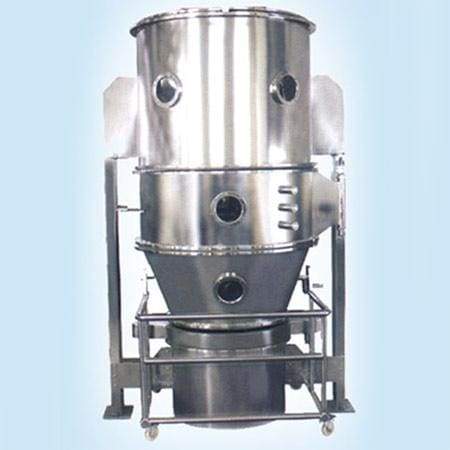

Model Fl Series Fluidized Granulating Dryer
Application:
1. Pharmaceutical industry: tablet, capsule, low sugar or no sugar granule of Chinese medicine.
2. Foodstuff: cocoa, coffee, milk-powder, juice of granulate, flavoring and so on.
3. Other industries: peticide, feed chemical fertilizer, pigment, dyestuff and so on.
4. Pharmaceutical industry: tablet.
Main properties:
1. Because of powder Granulation, the fluidity is improved and the dust is reduced;
2. Because of powder Granulation, its solving property is improved;
3. The mixing ,Granulating and drying can be completed in one step-inside the machine;
4. The operation of equipment is safe because the anti static filtering cloth is adapted;
5. The operation of personnel can not be damaged if explosion take place because there is releasing hole;
6. The equipment had no dead corner, Therefore the loading and unloading are quick and light and clean. It can meet the requirements of GMP.
Working Principle:
The powder granulation in the container (fluidization) appear in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive solvent is fogged and sprayed into the container. It makes the some particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulation is evaporated and the adhesive is solidification. The process is carried out continuously. Finally it forms ideal, uniform and Porous granules.
Technical Parameters:
|
type
item
|
|
3
|
5
|
30
|
60
|
120
|
200
|
300
|
500
|
|
|
Container of raw material
|
Dim
|
mm
|
300
|
400
|
700
|
1000
|
1200
|
1400
|
1600
|
1800
|
|
Volume
|
L
|
12
|
22
|
100
|
220
|
420
|
670
|
1000
|
1500
|
|
|
Production capacity
|
Min
|
Kg/batch
|
1.6
|
4
|
15
|
30
|
80
|
100
|
150
|
250
|
|
max
|
Kg/batch
|
4
|
6
|
36
|
72
|
140
|
240
|
360
|
600
|
|
|
Consume of steam
|
Kg/batch
|
12
|
23
|
70
|
140
|
211
|
282
|
366
|
465
|
|
|
Amount of compressed air
|
M3/min
|
0.3
|
0.3
|
0.3
|
0.6
|
0.6
|
0.9
|
1.1
|
1.6
|
|
|
Power of fan
|
kW
|
2.2
|
4
|
5.5
|
11
|
18.5
|
22
|
30
|
45
|
|
|
Temperature
|
?
|
From room temperature to operating temperature in 120? to be set randomly
|
||||||||
|
Yield
|
%
|
>99
|
||||||||
|
Option time
|
Min
|
15-30
|
||||||||
|
Content at final term
|
%
|
-0.2
|
||||||||
|
Noise
|
dB
|
?75
|
||||||||
|
Height of main machine
|
mm
|
2100
|
2300
|
2500
|
3000
|
3300
|
3800
|
4000
|
4400
|
|
