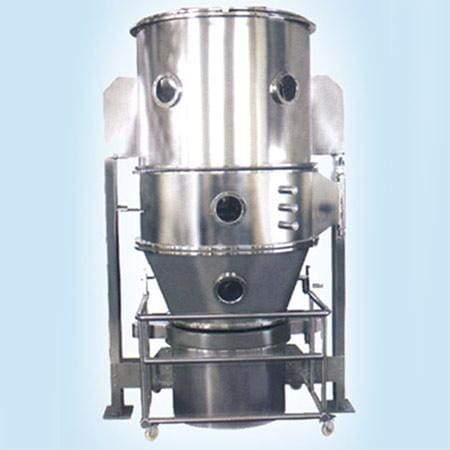

Model Fl Series Fluidized Granulating Dryer

APM-USA

$4,000.00
SKU: P5167S

Application:
1.       Pharmaceutical industry: tablet, capsule, low sugar or no sugar granule of Chinese medicine.
2.       Foodstuff: cocoa, coffee, milk-powder, juice of granulate, flavoring and so on.
3.       Other industries: peticide, feed chemical fertilizer, pigment, dyestuff and so on.
4.       Pharmaceutical industry: tablet.
Main properties:
1.       Because of powder Granulation, the fluidity is improved and the dust is reduced;
2.       Because of powder Granulation, its solving property is improved;
3.       The mixing ,Granulating and drying can be completed in one step-inside the machine;
4.       The operation of equipment is safe because the anti static filtering cloth is adapted;
5.       The operation of personnel can not be damaged if explosion take place because there is releasing hole;
6.       The equipment had no dead corner, Therefore the loading and unloading are quick and light and clean. It can meet the requirements of GMP.
Working Principle:
The powder granulation in the container (fluidization) appear in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive solvent is fogged and sprayed into the container. It makes the some particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulation is evaporated and the adhesive is solidification. The process is carried out continuously. Finally it forms ideal, uniform and Porous granules.
Technical Parameters:
           type
item

3
5
30
60
120
200
300
500
Container of raw material
Dim
mm
300
400
700
1000
1200
1400
1600
1800
Volume
L
12
22
100
220
420
670
1000
1500
Production capacity
Min
Kg/batch
1.6
4
15
30
80
100
150
250
max
Kg/batch
4
6
36
72
140
240
360
600
Consume of steam
Kg/batch
12
23
70
140
211
282
366
465
Amount of compressed air
M3/min
0.3
0.3
0.3
0.6
0.6
0.9
1.1
1.6
Power of fan
kW
2.2
4
5.5
11
18.5
22
30
45
Temperature
?
From room temperature to operating temperature in 120? to be set randomly
Yield
%
>99
Option time
Min
15-30
Content at final term
%
-0.2
Noise
dB
?75
Height of main machine
mm
2100
2300
2500
3000
3300
3800
4000
4400
