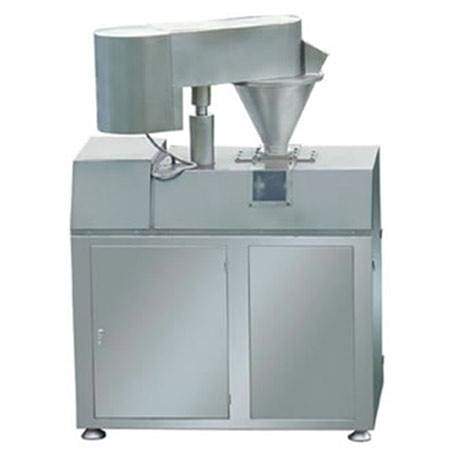

Model Gk Series Dry Granulator

APM-USA

$4,000.00
SKU: ACE-SOR-EIS-71

Application:
Pharmacy : grains for pressed pill ,and for capsule filling grains and etc.
Food : grains for food manufacturing ,for seasoning .
Plastics: various plastics shaping grains .
Chemical : catalyst, color, detergent and other grains.
Features:
1 . The dry powder grain density is uniform .The disintegration is good .The grain making rate is high.
2 .The special material conveyor structure will ensure the effective material sending .
3 .The roll cool circulation will ensure that there is no phenomenon that the materials stick to the roll .
4 .It is not necessary to use the water ,alcohol and other wet agent .There is no need of twice heating and drying .The operation procedure is less . The machine is high in operation efficiency and low in the cost .
5 .The machine uses the advanced electric and hydraulic driving .it is simple and reliable in the operation and high in the automation grade.
6 .With the enclosed operation ,there is no pollution ,which meets the pharmacy health requirements
7 .The machine is especially suitable for the material grain making that can not be made by the wet method .
Principle:
By using the crystallization water in the materials ,the equipment can directly make the powder materials into the grains .it is a kind of new equipment .The structure is rational .The machine is stable and reliable in the performance and easy in maintenance .
The grains to be made can be used for pressed pills ,instant soluble agent ,capsule and etc. The machine is mainly used for the grain making in pharmacy .food, chemical and other industries and it is suitable for the grain making for which the wet method can not settle it .
Technical parameters:
spec
capacity (kg/h)
hopper volume (L)
roll size (mm)
max roller prepressure (MPa)
max operation pressure of the hydraulic system (MPa)
roller and material conveying speed
40
5-20
3
? 120 × 40
6
8
inverter control
80
20-60
3
? 200 × 80
10
15
inverter control
120
30-100
5
? 200 × 120
10
15
inverter control
