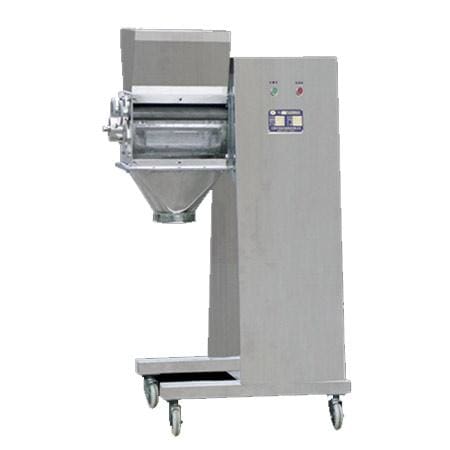

Model Yk Series Swing Granules Maker

APM-USA

$4,000.00
SKU: ACE-SOR-EIS-69

Application:
The machine can make granules from wet powder materials and crush the dry lumpish materials to granules, which is applicable to the pharmacy, chemical industry, foodstuff industry, etc.
Working principle:
The materials are crushed into granules from the screen by the roller swings back and forth.
Technical Parameters:
Type
YK-100
YK-160
YK-250
Capacity(kg/h)
30-200
50-300
100-800
Motor Powder(kW)
1.1
2.2
5.5
Turning Speed of Cylinder(r/min)
55
55
55
Swing angle(º)
360
360
360
Cylinder Diameter(mm)
?100
?250
Overall Size(L*W*H)mm
700*400*1050
1000*800*1300
1270*1000*1400
Weight
280
450
800
