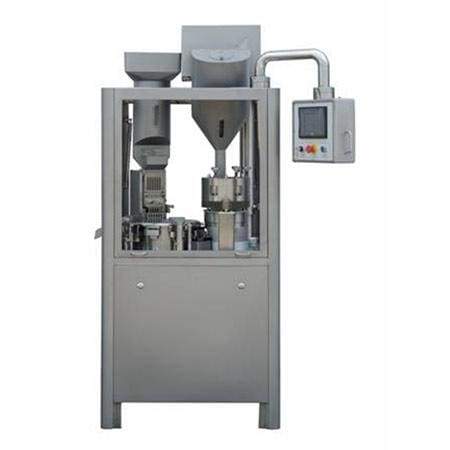

Njp-400\600\800cfully Automatic Hard Capsule Filling Machine

APM-USA

$4,000.00
SKU: ACE-SOR-EIS-121

Summary:
This model is an intermittent motion and hole plate type-filling full automatic capsule filling equipment. It adopts optimization design for meeting the characteristics of Chinese medicine and the requirement of GMP, it has the characteristics of compact mechanism, small volume, lower noise, precision filling dosage, multi-function, stable running etc. It can finish the following motion at same time: capsule feeding, capsule separating, powder filling, capsule rejecting, capsule locking, finished capsule discharge and die hole cleaning etc. It is the most ideal hard capsule filling equipment for pharmaceutical and health food industry.
Technical Parameters:
Model
NJP-400C
NJP-600C
NJP-800C
Filling dosage
Powder, pellets, tablet
Powder, pellets tablet
Powder pellets tablet
Capsule size
Capsule size 00#-5# and safety capsule A-E
Max. output
24000capsules/hour
36000capsules/hour
48000capsules/hour
Power supply
380V 50Hz 2.3kW
380V 50Hz 2.3kW
380V 50Hz 2.3kW
Noise
<75dBA
<75dBA
<75dBA
Dimension
930*790*1930mm
930*790*1930mm
930*790*1930mm
Net weight
800kg
800kg
800kg
