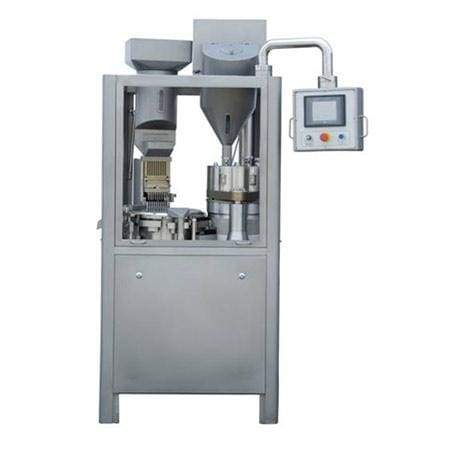

Njp-900\1000\1200c Series full Automatic Hard Capsule Filling Machine
Summary:
This model is an intermittent motion and hole plate type filling full automatic capsule filling equipment. It adopts optimization design for meeting the characteristics of Chinese medicine and the requirement of GMP, it has the characteristics of compact mechanism, small volume, lower noise, precision filling dosage, multi-function, stable running etc. It can finish the following motion at the same time: capsule feeding, capsule separating, powder filling, capsule rejecting, capsule locking, finished capsule discharge and die hole cleaning etc. It is the most ideal hard capsule filling equipment for pharmaceutical and health food industry.
Technical Parameters:
Model
|
NJP-900C
|
NJP-1000C
|
NJP-1200C
|
Filling dosage
|
Powder, pellets, tablet
|
Powder, pellets, tablet
|
Powder, pellets, tablet
|
Capsule size
|
Capsule size00#-5# and safety capsule A-E
|
||
Max. output
|
54000Capsule/hour
|
60000 Capsule/hour
|
72000 Capsules/hour
|
Power-supply
|
380V 50Hz 2.5kW
|
380V 50Hz 2.5kW
|
380V 50Hz 2.5kW
|
Noise
|
<75dBA
|
<75dBA
|
<75dBA
|
dimension
|
1020*860*1970mm
|
1020*860*1970mm
|
1020*860*1970mm
|
Net weight
|
900kg
|
900kg
|
900kg
|
