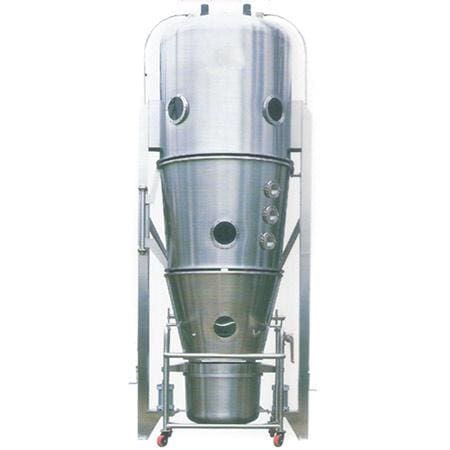

Pgl-b Series Spray Dryer Granulator

APM-USA

$4,000.00
SKU: ACE-SOR-EIS-60

Main properties:
It is a new type of granulation machine combining technique of spray drying and fluid bed granulation. It utilizes negative pressure hot air flow to dry the liquid in spray chamber and the liquid on materials very fast, and also agglutinate them together into granules. The size of granules can be controlled by adjusting parameter.
Features:
Combines spraying, drying, mixing and granulation into one.
Makes granules with few assistant materials, small dosage amount, low sugar or sugar free.
Granules dissolved instantly, drinking preparation easily dissolve out and tablets disintegrated easily.
Machine works at negative pressure with smooth and cleaning inside surface without dead corner. It is convenient for cleaning to meet GMP requirements.
Application
Granules for drinking preparation, tablets and capsules.
Granules for time control releasing.
Granules for instant dissolved food and beverages.
Granules for chemicals.

Technical Parameter
item
model
unit
PGL-3B
PGL-5B
PGL-10B
PGL-20B
PGL-40B
PGL-80B
PGL-120B
capacity
kg/batch
2-5
3-15
10-30
30-80
50-160
100-250
150-450
Capacity for extracts
kg/batch
1-4
2-8
4-20
8-40
20-60
40-120
100-140
Liquid gravity
Kg/L
?1.3
Volume of-fluid bed
kg
26
50
120
300
500
750
1100
Power of main fan
kw
3/4
4/5.5
5.5/7.5
11/15
18.5/22
30/37
45/55
Power of assistant fan
Kw
0.55
0.55
1.1
1.1
1.5
1.5
2.2
steam
consumption
Kg/h
40
70
99
210
300
420
530
Pressure
Mpa
0.4-0.6
Power of electric heating
kw
9
15
21
25.5
51.5
60
75
Compressed
Air
consumption
M3/min
0.5
0.8
0.8
0.9
1.1
1.3
1.8
pressure
mpa
0.4-0.6
Working temp.
?
Adjustable from indoor temperature to 120?
moisture
%
?2
Collection of materials
%
?95
noise
db
?70 suction fan is separately treated
Dimension
of main
machine
?
mm
400
550
700
1000
1200
1400
1800
H1
mm
2190
2650
3050
3530
4020
4500
5430
H2
mm
1740
2200
2520
2950
3380
3860
4800
B1
mm
300
500
550
700
800
900
1000
B2
mm
720
980
1130
1430
1630
1830
2030
