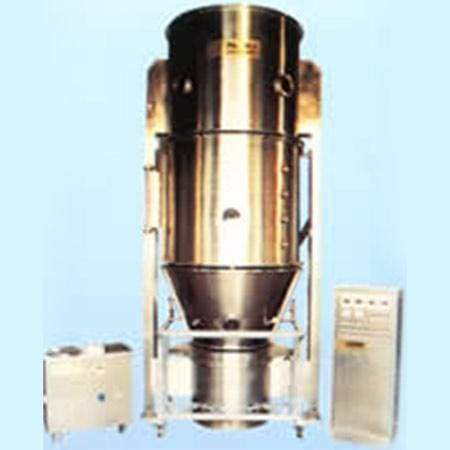

Pgl-b Spray Drying Granulator (fluid Bed)

APM-USA

$4,000.00
SKU: ACE-SOR-EIS-74

Application:
Pharmaceutical industry: tablet, capsule granule, granule of Chinese medicine with on or low sugar
Foodstuff; cocoa, coffee, milk powder, juice of granule, flavoring and so on.
Other industries: pesticides, feed, chemical fertilizer, pigment, dyestuff and so on.

Integrate spraying, drying fluid granulating in one body to realize granulating from liquid in one step.
Using the process of spraying, it is particularly suitable for micro auxiliary raw materials and heat sensitive raw materials. Its efficiency is 1-2 times that FL boiling granulating machine.
The final moisture of some products can reach 0.1%. It is equipped with powder returning device. The rate of granule forming is more than 85% with 0.2-2mm of diameter.

The improved inner roller multi-flow atomizer can treat the liquid extract with 1.3g/cm3 of gravity.

Technical parameters:

Item
unit spec
PGL-3B
PGL-5B
PGL-10B
PGL-20B
PGL-30B
PGL-80B
PGL-120B
liquid extract
min
kg/h
2
4
5
10
20
40
55
max
kg/h
4
6
15
30
40
80
120
fluidization capacity
min
kg/batch
2
6
10
30
60
100
150
max
kg/batch
6
15
30
80
160
250
450
specific gravity of the liquid
kg/L
?1.30
volume of material vessel
L
26
50
220
420
620
980
1600
diameter if vessel
mm
400
550
770
1000
1200
1400
1600
power of suction fan
kw
4.0
5.5
7.5
15
22
30
45
power of auxiliary fan
kw
0.35
0.75
0.75
1.20
2.20
2.20
4
steam
consumption
kg/h
40
70
99
210
300
366
465
pressure
Mpa
0.1-0.4
power of electric heater
kw
9
15
21
25.5
51.5
60
75
compressed air
consumption
m3/min
0.9
0.9
0.9
0.9
1.1
1.3
1.8
pressure
Mpa
0.1-0.4
operating temperature
?
automatically regulated from indoor temperature to 130?
water content of product
%
?0.5% (depends on the material)
rate of product collection
%
?99%
noise level of machine
dB
?75
weight
kg
500
800
1200
1500
2000
2500
3000
dim. of main machine
?
mm
400
550
770
1000
1200
1400
1600
H1
mm
940
1050
1070
1180
1620
1620
1690
H2
mm
2100
2400
2680
3150
3630
4120
4740
H3
mm
2450
2750
3020
3700
4100
4770
5150
B
mm
740
890
1110
1420
1600
1820
2100
Example of model choice: Suppose that are 120kg liquid extract I (include 30% solid) and 60kg seed II in one vessel, from I and II, we can get theoretical product amount M=mI+mII=120kg×30%+60kg=96kg, working time T=120kg/30kg/h=4h, from the parameter table we can find that the fluidization amount is inside the standard loading range. If we require two batches in one duty time, model PGL-30B is OK.
