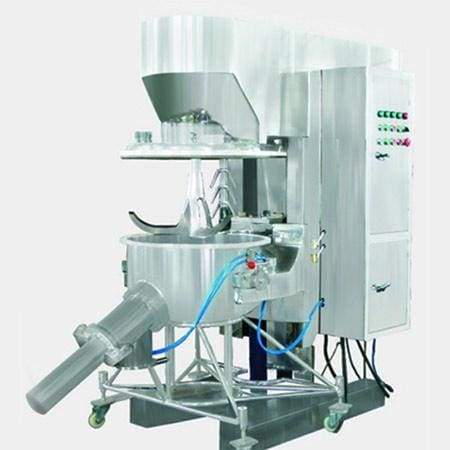

Quick Stirring Granulator

APM-USA

$4,000.00
SKU: ACE-SOR-EIS-68

Main uses:
This is a late-model we-process granulating equipment capable of effectively mixing raw and auxiliary materials and turning out high-quality wet granules. This machine enjoys such features as uniform mixing , less consumption of binding agent, good kneading power, airtight production process, easy clean out with the material contacting parts made of stainless steel and with no dead andle the wet granules being in the form of loosening snowflake without any solid cobs and with less fine powders, etc. It is an advanced granulating equipment worth developing and popularizing and is widely applicable to such trades as pharmacy, food, chemical, power, metallurgical, dye,etc.
Technical Parameters:
Type
10
75
150
300
400
600
1200
Maximum capacity ?L?
10
75
150
300
400
600
1200
Working capacity (L)
7
50
100
200
275
400
800
String speed (r/min)
430/660
203/306
150/225
120/185
106/160
95/135
75/115
Grind speed (r/min)
1410/2850
1420/2830
1400/2800
1430/2890
1500/3000
1420/2880
1200/2450
Stirring power(kw)
1.1/0.6
5.5/3.7
11/7.50
18.5/14
18.5/14
37
55
Wring power (kw)
1.05/0.6
3.7/1.9
3.7/1.9
7.5/3.7
7.5/3.7
11/5.5
11/5.5
