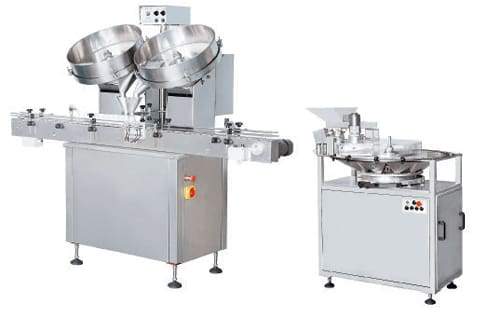

Round Plate Counting Machine (yp-60)

APM-USA

$4,000.00
SKU: ACE-SOR-EIS-257

Model Round plate counting machine

Performance

1.It is widely used especially for tablet (non-coated and coated), pellet, capsule in pharmaceutical industry.

2.Control system adopts PLC control system from Japan, which runs steadily.

3.The machine adopts frequency control, finish non-step speed regulation of the rotor tray, which is steady and reliable

4.There is decentration vibration structure in the counting machine, the angle of gradient and the vibration can be adjusted.

5.The machine is in pause status when the bottles supplying is insufficient or bottles blocked there and backe to normal when the problems solved.

Technical parameters

Date / model

YP-60

YP-80

Capacity (bottles/min)

20-60

20-80

Filling quantity per bottle(pills)

20-180

20-180

Container specs diameter

Height

?20-?80mm

30-150mm

?30-?70mm

30-120mm

Drugs specs Tablet

Capsules

?5-?12mm

00#?0#-4#

?5-?16mm

?5-?16mm

Noises

?75db(A)

?75db(A)

Voltage input

AC220V 50HZ

AC220V 50HZ

Total power

1.2KW

0.5KW

Conveyor length

2000mm

1500mm

Dimension

1630x780x1580mm

940x1360x1475mm

Weight

360kg

300kg

Compressed air supply

0.5Mp

0.5Mp
