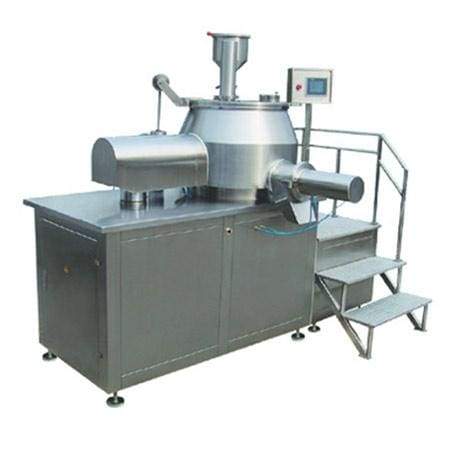

Supper Mixing Granulator Model Lm-10?50?100?200?300?400?600

APM-USA

$4,000.00
SKU: ACE-SOR-EIS-66

Application:
This machine is widely used in pharmaceutical, food, chemical and light industries?Etc. to blend powdery materials and granulate.
Working principle:
The blending and granulating procedures and completed in the same vessel of the machine. Powdery materials in the stationary conic vessel remain in a semi-flowing and rolling state owing to the agitation by a blending paddle, and are fully mixed. After pouring in adhesives ,the powdery materials gradually change into fine, damp granules turn moist and their shapes begin paddle and the inside wall of vessel, powdery materials turn into loose, soft materials. Through the action of granule shaping paddle, the soft materials gradually change into fine, damp granules with the same size.

Technical parameters:
Model
LM10
LM50
LM100
LM200
LM300
LM400
LM-600
Total capacity
10 dm3
50 dm3
100 dm3
200 dm3
300 dm3
400 dm3
600dm3
Working capacity
2-6 dm3
12-36 dm3
25-70 dm3
50-150 dm3
60-220 dm3
100-280 dm3
150-440dm3
Material feeding capacity
1-3kg
6-18kg
12-35 kg
25-75 kg
30-110 kg
50-140 kg
75-220kg
Stirring paddle rotary speed
50-500r.p.m
50-500r.p.m
30-360r.p.m
30-260r.p.m
20-200r.p.m
20-200r.p.m
20-200r.p.m
Cutting knife rotary speed
50-3000r.p.m
50-1460r.p.m
Length
1500
2100
2400
2250
2500
2500
2900mm
Width
570
780
900
1700
1960
1960
2630mm
Height of outlet
700
725
750
930
930
930
1150mm
Height
1350
1500
1700
2100
2220
2320
2330mm
Weight
260
420
760
1200
1600
1650
3000kg
