kcq Series Bottle Washing Machine

APM-USA

$4,000.00
SKU: ACE-SOR-EIS-173

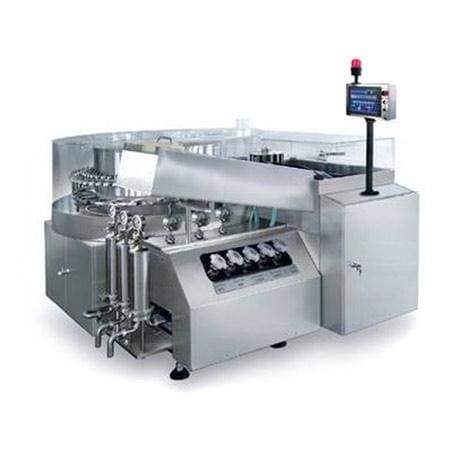

KCQ type vertical ultrasonic automatic bottle washing machine

Characteristic

  1. Unique vertical rotary drum structure, adopting manipulator to continue fix bottle, auto bottle overturning to the bottom up and spray need tracking system. After ultrasonic coarsely washing, auto sent to finely washing. Needled inserted into bottle for strongly back rinsing and water or gas alternately spray to the inner and outer part of the bottle.

2.Have coarsely washing and finely washing section

3.Cleaning water and air pipes are seperate, no overlapping pollution.

4.Speed adjusted by inverter.

5.One machine can finish auto bottle coming, coarsely washing, finely washing and seading to the next procedure

6.Can be used as a single machine, or linked to other machine as part of the production line.

7.Meet the requirement of GMP.

Technical parameters:

Model

KCQ30

KCQ40

KCQ60

KCQ80

Bottle specs.

Antibiotic vial

2ml-100ml

2ml-100ml

2ml-20ml

2ml-20ml

Oral liquid bottle

5ml-50ml

5ml-50ml

5ml-20ml

5ml-20ml

Ampoule

1ml-20ml

1ml-15ml

1ml-10ml

1ml-10ml

Pure water pressure

0.15-0.35Mpa

0.15-0.35Mpa

0.15-0.35Mpa

0.15-0.35Mpa

Pure water quantity

0.3m3/h

0.4 m3/h

0.6 m3/h

0.8 m3/h

Compressed air pressure

0.25-0.35Mpa

0.25-0.35Mpa

0.25-0.35Mpa

0.25-0.35Mpa

Compressed air quantity

20 m3/h

30 m3/h

45 m3/h

60 m3/h

Dimension

1800x1800x1300

2100x1900x1300

2100x1900x1300

2500x2250x1300

Production capacity

150-160bottles/min

200-220bottles/min

300-320bottles/min

400-450bottles/min

Equipment weight

1500kg

1900kg

2200kg

2500kg

Power supply

380V 50Hz

Power

17.05kw

Single machine noise

?70dB
