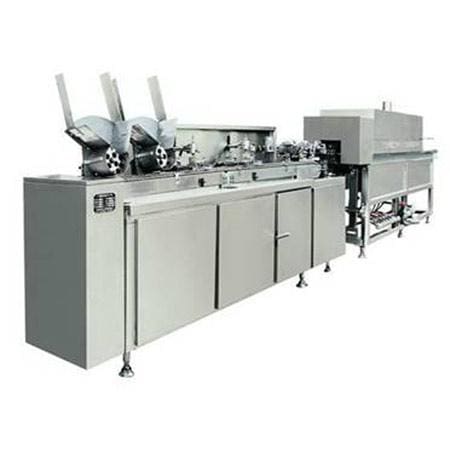

Yzs Series Ampoule High Speed Silk Screen Color Glaze Printing Production Line

APM-USA

$4,000.00
SKU: ACE-SOR-EIS-161

Application:
YZS High-speed Ampoule Silk-screen Glaze Printing line combines advantages of printing lines both from home and broad. It is specially fit for glaze-printing of 1ml, 2ml, 5ml, 10ml, 20ml, and non-state standard ampoules in horizontal or vertical ampoule production. Clear characters, brilliant glaze, film firing and bright color satisfy the requirements for ampoule printing.
Technical parameters:
Functions: Automatic bottle setting, printing, automatic raising knife in empty bottle positions and firing glaze
Production model
YZS Ordinary
YZS-2000 (HIGH SPEED)
Adaptable specification
Ampoule 1-20ml
Ampoule 1-20ml
Baking over power
Max. 15kw or gas 3-5m3/h
Max.30kw or gas 4-6m3/h
Motor power
0.55kw 380v
1.5kw 380v
Overall dimension
?L x W x H?6000x600x1250mm
(L x W x H) 6000x1000x1250mm
Production capacity
3600-4200pcs/hour (Frequency control of motor speed)
Max 8500pcs/hour (Frequency control of motor speed)
weight
1600kg
1850kg
