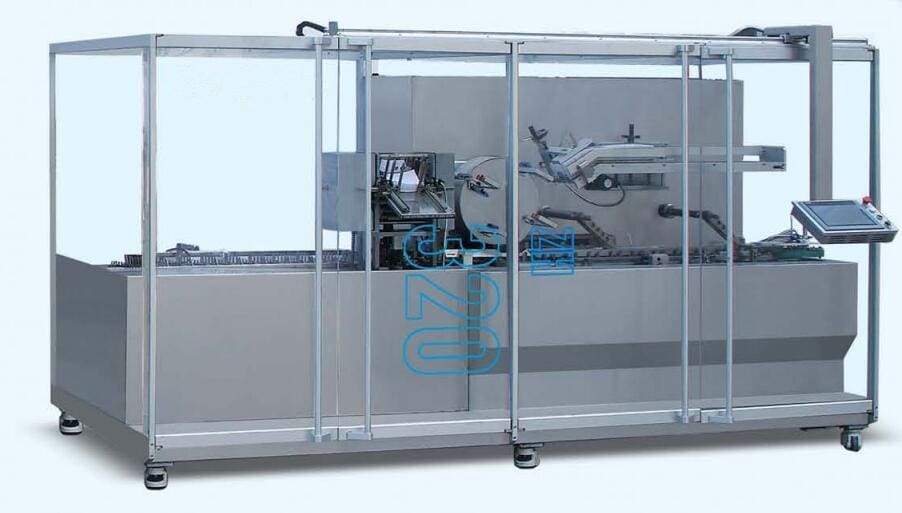

Zh-320/450 Multifunctional Automatic Cartoner

APM-USA

$4,000.00
SKU: ACE-SOR-EIS-382

Main Function:

Automatic folding(1-4 folding) and conveying of manual leaflet,automatic material categorizing and feeding; automatic paper carton apreading; automatic manual leaflet and material carton packaging,synchronous(3-row)batch number printing,automatic paper carton sealing,automatic waste-products eliminating. It can be used for AL/PVC blister plates,injection tray,bottles,ointment products automatic encasing.

Performance and Characteristics:

1.Continuous mechanical feeding materials and carton packing,and working of each functional part is in harmony,stable and reliable.

2.When materials do not reach correct position,the pusher has an alam and halt facility for that,in order to ensure good quality of carton packaging and safety in operation effectively.

3.Constantly moving carton-opening and pulling carton-opening mechanism are more stable and reliable.

4.Servo material departing and feeding mechanism is stable and eliable.

5.Halt facility for air pressure and vacuum protection,when safety-cover is opened,the halt facility will be checked automatically for operating safety of the machine.

6.It is easy,convenient and quick to change and adjust product size by hand wheel.

7.Variable frequency speed regulation,automatic PLC control system with touch screen, easy to operate,the system run stably.

8.Overload protection for principal driving,indication of failure diagnosis,automatic fault shutdown.

Technical parameters

Model

ZH-320

ZH-450

Encasing Speed

?320?Box/min?

?450?Box/min?

Box

Quality requirement

250-350g/?

250-350g/?

Dimension range(L*W*H)

?80-150?x?40-70?x?15-40?mm

?90-160?x?40-90?x?16-30?mm

Leaflet

Quality requirement

60-80g/?

70-80g/?

Unfolded leaflet specification

(1-4 Fold)

?130-240?x?100-180?mm

?130-250?x?100-180?mm

Air consumption

?0.3m³/min 0.6mpa

?0.3m³/min 0.6mpa

Motor Power

2.2kw 380v 50HZ

3.2kw 380v 50HZ

Machine Dimension(L*W*H)

4500x1600x1600mm

4500x1600x1700mm

Machine Net Weight

1850kg

2000kg
