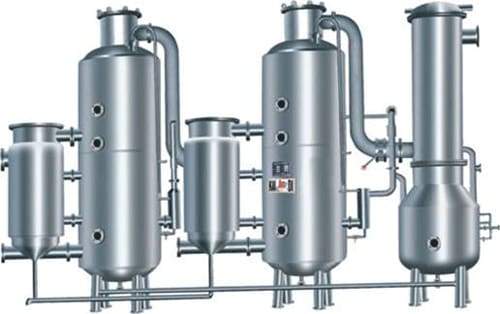

Zns2-500-5000 Model the Newest Internal-heating Two-effect-energy Saving Evaporator

APM-USA

$4,000.00
SKU: ACE-SOR-EIS-274

Summary:

This equipment is widely used to concentrate the liquid in pharmaceutical, chemical, food, dairy products industries, especially applying

to concentrate thermal medicine under vacuum and low temperature.

1.It is designed according to the principle that the steam contains less heat energy under the low temperature (Vacuum) condition than it does under the high temperature condition, while under the low temperature condition, the heat of vaporization is high instead.

2. 2. Referring to the related foreign data, an excellent structure has been adopted in evaporator and heater to remove the steam resistance, decrease the vacuum loss, and reduce the heat wastage, which has gained remarkable energy-saving affection,

3. 3. A strong flow technology of external heating temperature difference cycle has been adopted, which can make cycle speed high, evaporating speed fast, the time of receiving heat short, and not to curdle easily. Its concentrating ratio can reach 1.4 or so.

4. 4.Adopt a two-effection evaporating simultaneously to make full use of the second steam, and each affection`s evaporating temperature, especially applying to thermal medicine s concentrating requirement.

5.5.the whole set of equipment is made of high-quality stainless steel, according to the demands of the law of medical medicine and food sanitation and reaching the requirements of GMP

Technical parameters:

Model

ZNS2-500

ZNS2-700

ZNS2-1000

ZNS2-1500

ZNS2-2000

ZNS2-3000

ZNS2-5000

Evaporation(kg/h)

500

700

1000

1500

2000

3000

5000

Steam consumption (kg/h)

300

420

600

800

1200

1800

300

Steam pressure (MPa)

0.05~0.09

Vacuumization (MPa/?)

one effect 0.06mpa?85??two effect 0.06mpa?65???
