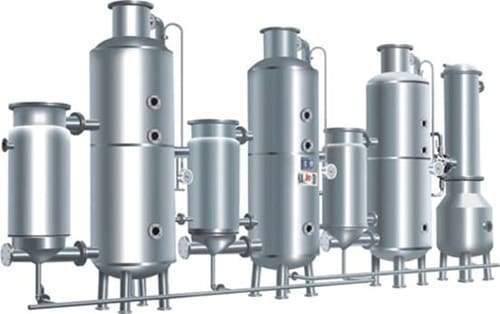

Zns3-500-5000 Model the Newest

APM-USA

$4,000.00
SKU: P4796S

Application:

This equipment is widely used to concentrate the liquid in pharmaceutical, chemical, food, dairy products industries, especially applying to concentrate thermal medicine under vacuum and low temperature.

  1. It is designed according to the principle that the steam contains less heat energy under the low temperature (vacuum) condition than it does under the high temperature condition, while under the low temperature condition, the heat of vaporization is high instead.
  2. Referring to the related foreign data, an excellent structure has been  adopted in evaporator and heater to remove the steam resistance, decrease the vacuum loss, and reduce the heat wastage, which has gained remarkable energy-saving affection.
  3. A strong flow technology of external heating temperature difference cycle has been adopted, which can make cycle speed high, evaporating speed fast, the time to receiving heat short, and not to curdle easily. Its concentrating ratio can reach 1.4 or so.
  4. Adopt a three-effection evaporating simultaneously to make full use of the second steam, and each affection is different vacuum evaporating operation, which can reduce each affections evaporating temperature, especially applying to thermal medicines concentrating requirements.
  5. The whole set of equipment is made of high-quality stainless steel, according to the demands of the law of medical medicine and food sanitation and reaching the requirements of GMP.

Technical parameters:

Model

ZNS3-500

ZNS3-700

ZNS3-1000

ZNS3-1500

ZNS3-2000

ZNS3-3000

ZNS3-5000

Evaporation(kg/h)

500

700

1000

1500

2000

3000

5000

Steam consumption (kg/h)

200

280

400

600

800

1200

1800

Steam pressure (MPa)

0.05~0.09

Vacuumization (MPa/?)

one effect 0.04mpa?85??two effect 0.06mpa?75??three effect 0.08mpa?65??
