Zp-11 Zp-18 Rotary Tablet Press Machine

APM-USA

$4,000.00
SKU: ACE-SOR-EIS-32

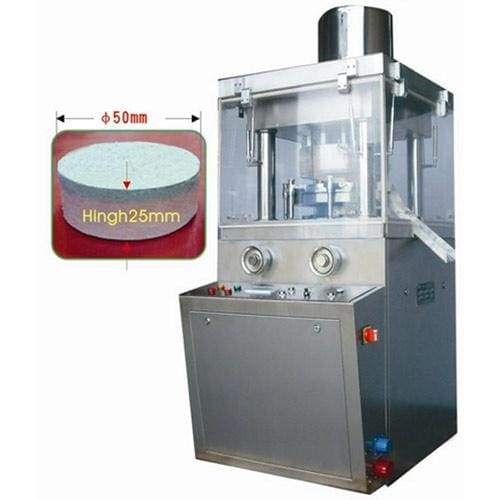

ZP-11 ZP-18 Rotary Tablet Press Machine
Application & summary
Rotary Tablet press model ZP-18/ZP-11 is used in electronic industry, Food industry, chemical industry, Articles of everyday use industry and pharmaceutical industry, for pressing various granular raw materials into special shaped tablets. For example: electronic element, camphor ball, catalyst and powder metallurgy.
Technical parameters:
ZP-11
ZP-18
Dies
11 sets
18 sets
Max. Pressure
100KN
100KN
Max. Dia of Tablet
(chunk)32*32mm/(round)45mm(annular)45*20mm
(round)30mm/(chunk)21*21mm/(annular)30*10mm
Max. Depth Of Fill
45mm
45mm
Turret Speed
6-12r/min
10-20r/min
Motor
5kw
5kw
Overall Size
910*1120*1650 mm
910*1120*1650mm
Net Weight
1200kg
1200kg
