Zp-17/zp-19 Substandard Tablet Press

APM-USA

$4,000.00
SKU: ACE-SOR-EIS-16

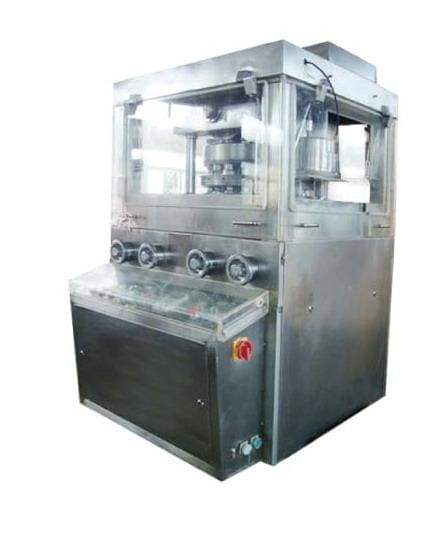

ZP-17/ZP-19 Substandard tablet press

  1. Main application

The machine is a double-press and continuous automatical tablet press for pressing granular raw materials into tablet. It is mainly used in pharmaceutical, chemical, food and electronic industries.

  1. Features
  2. Machine meet GMP and made in stainless steel. The inner tablet press surface already be special treated, which could keep surface luster and prevent from being polluted crossly.
  3. Equipped with transparent window which could help to observe the status of pressing tablet. Transparent window could be fully opened, Machine easy to clean and Maintenance. All monitors and operating components work well together.
  4. Machine speed could be adjusted.
  5. Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.
  6. Ransmitting system is sealed in the oil box under the working area, which work separately. No pollution and easy to send out heat and resist grinding.
  7. A power suction unit is attached to take the residual power during operation, so that blockage powder can be collected and be reused.
  8. Technique parameter

Model

ZP-17

ZP-19

Punching dies

17sets

19sets

Max.working pressure

80kn

80kn

Max.Dia.of Tablet

45mm

40mm

Max.Thickness of tablet

20mm

20mm

Max.depth of fill

35mm

28mm

Max.output

15300

17100

Max. working dia.

430mm

430mm

Speed of rotary table

5-15r/min

5-15r/min

Dia.of punching die

46mm

46mm

Dia.of center form

58mm

58mm

Dia.mater of stamp

42mm

35mm

Length of upper punching bar

166m

166m

Length of lower punching bar

182mm

193mm

Machine accommodation area

1330 x 1050mm

1330 x 1050mm

Machine height

1870mm

1870mm

Net weight

2200kg

2200kg

Motor model

Y132S-6

Y132S-6

Power

3kw

3kw

Speed

950r/min

950r/min

Voltage

380V.50HZ

380V.50HZ
