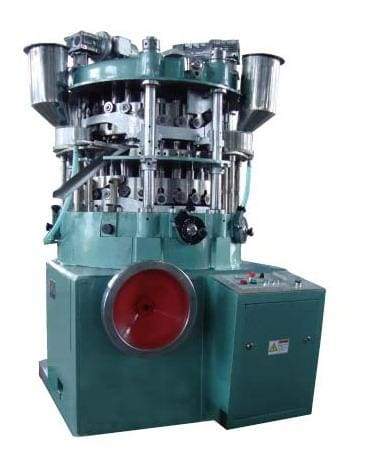

Zp-25 Rotary Tablet Press
ZP-25 rotary tablet press
1. Main application
ZP25 Rotary tablet press is the lastest developed a three layer tablet press, the machine press machine also press the granular raw material into tablet. It is mainly used in pharmaceutical industry, chemical industry, food.
2. Features
A. Machine equipped with force feeder
B. Machine speed could be adjusted
C. Each force feeder equip with vacuum device to prevent the different color material corss-contamination.
D. Machine with big pressure, work stablility
E. Machine could press the big tablet.
3. Technique parameter
|
Dies |
25 |
|
Max.pressure(Kn) |
120-150kn |
|
Max.Dia.of Tablet(mm) |
45mm |
|
Thickness of largest tablet(mm) |
22mm |
|
Max.Depth of fill(mm) |
44mm |
|
Diameter of the upper and lower punch |
55mm |
|
Length of the upper punch |
255mm |
|
Length of the lower punch |
228mm |
|
Thickness of mold |
55mm |
|
Diameter of mold |
60mm |
|
Speed range |
0-5.5 |
|
capacity |
8250 |
|
Net weight |
7300kg |
|
Deputy machine weight |
85kg |
|
Main dimensions(length x width x height) |
1040 x 1040 x 2100(mm) |
|
Vice-machine size(length x width x height) |
654 x 505 x 938(mm) |
|
power |
7.5KW |
