Zp-5 7 9 Rotary Tablet Press

APM-USA

$4,000.00
SKU: P4532S

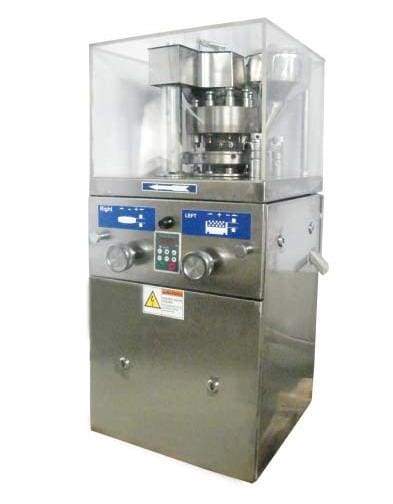

 ZP-5 7 9 rotary tablet press

  1.  Main application

The machine is a single-press type, continuoue automatic tablet press for pressing granular raw materials into tablets. It is sued for small-scale production.

  1. Features

   A.The machine is compliance with the GMP requirement on the production of pharmaceuticals.

  1. The compression parts is entirely separated from the driving mechanisms
  2. All spare parts to be in contact with the pharmaceuticals are made of stainless steel or the surface being treated specially for non-toxicity & corrosion proof
  3. The compression area is enclosed with transparent organic glass. To prevent contaminates, The compression area can be specially treated. All surfaces being smooth & easy to clean.
  4. Machine speed, the depth of filling, the thickness of the tablet could be adjusted.
  5. The mechanical buffer unit will prevent punches and apparatus from overload damage.
  6. technique parameter

Type

ZP-5A

ZP-7A

ZP-9A

Dies

5

7

9

Max.pressure(Kn)

40

40

40

Max.Dia.of Table(mm)

12

12

12

Max.Depth of fill(mm)

15

15

15

Max.Thickness of Table(mm)

6

6

6

Turret speed(r/min)

30

30

30

Production Capacity(pc/h)

9000

12600

16200

Moto(Kw)

1.5

1.5

1.5

Overall size(mm)

480*630*1100

480*630*1100

480*630*1100

Net weight(Kg)

260

260

260
