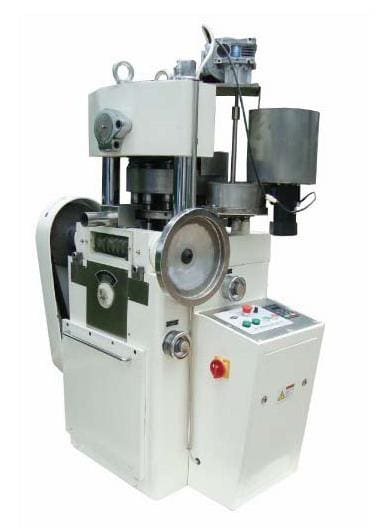

Zp13 15 17 19 21a Rotary Tablet Press

APM-USA

$4,000.00
SKU: P5117S

 ZP13 15 17 19 21A Rotary Tablet Press

  1. Main application:

This is the Multi-functional Rotary Tablet Press with a wide scope of application. It is applicable not only to the pharmaceutical and foodstuff industry but also the chemical, ceramic, electronic and battery industry for pressing the various kinds of granular materials into tablets.



  1. Feature
  2. Easy-clean and maintenance, its easy read how the machine work thought the Transparent window.
  3. The speed adjustable
  4.  Machine could press round tablet or other special tablet
  5. The machine could enclosed with the organic glass and stainless steel
  6. The mechanical buffer unit will prevent punches and apparatus from overload damage
  7. The machine pressure is over Than 10T. Machine could press big tablet



  1. Technique parameter

Dies(sets)

13

15

17

19

21

Max.pressure(KN)

150

150

120

120

80

Max.dia.of tablet(mm)

50

45

40

30

30

Max.Depth of fill(mm)

18-25

18-25

18-25

18-25

18

Thickness of largest table(mm)

8-15

8-15

8-15

8-15

9

Turret speed(r/min)

10-25

10-25

10-25

10-5

10-36

Length of the upper shank(mm)

175mm

175mm

175mm

175mm

175mm

Length of the lower shank (mm)

180mm

180mm

180mm

180mm

185mm

Production capacity(pc/h)

7800-19500

9000-23000

10200-25500

11400-28500

45000

Motor(kW)

7.5kw

7.5kw

7.5kw

7.5kw

3kw

Overall dimensions(mm)

900*800*1640

900*800*1640

900*800*1640

900*800*1640

900*800*1640

Net weight(kg)

1500

1500

1500

1500

1500
