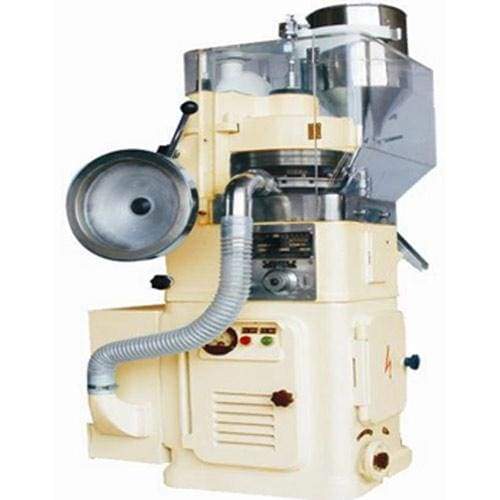

Zp17/zp19 Rotary Tablet Press Machine

APM-USA

$4,000.00
SKU: ACE-SOR-EIS-24

ZP Series tablet press machine
ZP17/ZP19 Rotary Tablet Press Machine
Application & Summary
This machine is not only suitable for pressing round tables from various kinds of granular materials but also different geometric shape tablets, specially for small-scale batch production. The turret carries 19(17) sets of punches and dies, so 19(17) tablets will be pressed for each revolution of the turret.
During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adjusted. The mechanical buffer unit will prevent punches and apparatus from overload damage.
A powder suction unit is attached to take in the residual powder during operation, so that the blockage by the residual powder can be eliminated and the collected powder material can be reused.
Technical parameter?
Dies
19sets
17sets
Max. Pressure
40KN
50KN
Max. Dia. of Tablet
13mm
5.5-20mm
Max. Depth of Fill
15mm
15mm
Max. Thickness of Tablet
6mm
6mm
Turret Speed
20-40r/min
20-40r/min
Production Capacity
25000-45000pc/h
25000-45000pc/h
Motor
2.2KW 380V 50Hz
2.2KW 380V 50Hz
Overall Size (L*W*H)
880*750*1600mm
880*750*1600mm
Net Weight
500kg
500kg
