Zp35/37/41d Rotary Tablet Press

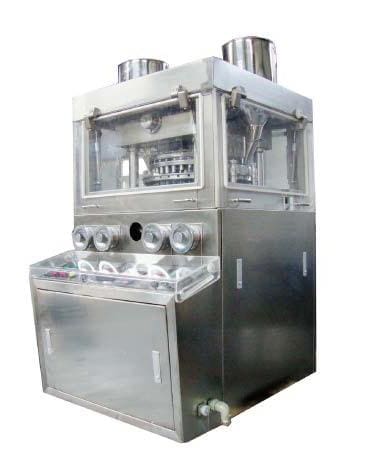

 ZP35/37/41D rotary tablet press

1.    Main application

The machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece, be carved characters, special shapes and double color piece prescription. It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry, foods, electronics.(Note: when manufacturing double color piece, it only need replacing components and adding power absorbing apparatus which greatly lowers the cost and raises profit.).

2.    Features

A.     Machine meet GMP and made in stainless steel. The inner tablet press surface already be special treated, which could keep surface luster and prevent from being polluted crossly.

B.     Equipped with transparent window which could help to observe the status of pressing tablet. Transparent window could be fully opened, Machine easy to clean and Maintenance. All monitors and operating components work well together.

C.     Machine speed could be adjusted.

D.    Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically. Combining machine with electricity. Equipped with touching key and screen. The first of its kind to use semi-automatically lubricating equipment and plexiglass anti-dust cover on the upper of revolving table.

E.      Ransmitting system is sealed in the oil box under the working area, which work separately. No pollution and easy to send out heat and resist grinding.

F.      .A power suction unit is attached to take the residual power during operation, so that blockage powder can be collected and be reused.

G.    Mould is generally same with ZP19, ZP35 and ZP37 Tablet press machine.

3.     Technique parameter
